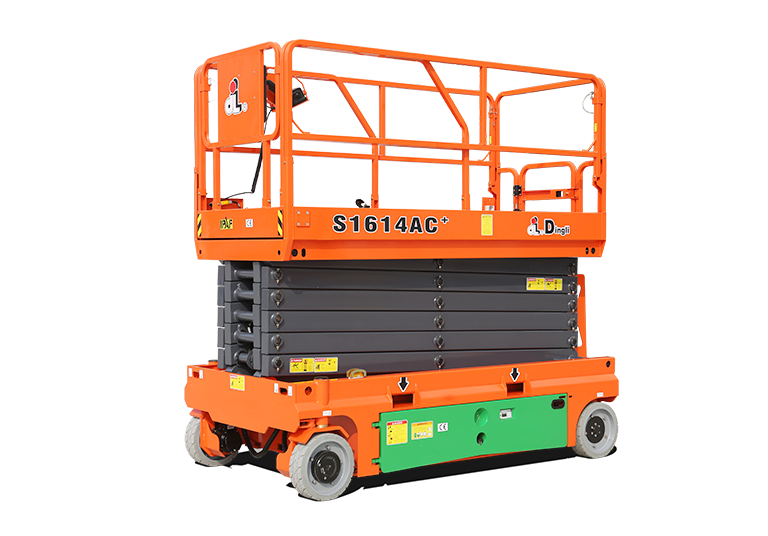

Dingli S1614AC+
  • Dingli S1614AC+
Scissor Lift

Dingli S1614AC+

  • 15.70m/51ft 6in
    Max. Working Height
  • 13.70m/44ft 11in
    Max. Platform Height
  • 2.84m/9ft 4in
    Overall Length(With Ladder)
View Complete Details
  • Overview
  • Specifications
Overview

● Performance+

1. Industry Leading Platform Capacity - Maximum increase up to 45% compared to the original model

2. Side and Rear Forklift Pockets - Multiple choices for transport efficiency

3. Lithium-Ion Battery with Long Duty Cycle and Fast Recharging - High-density battery pack with five-year warranty

4. High Strength Damage Resistant Tyres Compound - Double the life compared to conventional tyres



● Reliability+

5.Integrated Four-in-One Motor Controller - 40% reduction in connections and harnesses

6.New Platform Control Box - The durability of the touch pad is greatly improved, the new surface cleans easily, and the display is three times larger

7.Reliable Load Sensing System - Less affected by temperature and friction, scissor angle sensor reliability improvement



● Environment+

8. Hydraulic Oil Leak Containment - For applications with zero leak tolerance

9. Electric Actuator Steering System - No hydraulic oil, faster steering speed and 66% reduction in energy consumption

10. Gravity Down Energy Recovery System - Battery charge regeneration during platform descent

11. Highest Efficiency Electric Drive System - 15% decrease in energy consumption and higher power density

12. Highest Efficiency Electric Lift Pump System - 20% decrease in energy consumption and higher power density


Specifications
Max. Working Height 15.70m/51ft 6in
Max. Platform Height 13.70m/44ft 11in
Overall Length(With Ladder) 2.84m/9ft 4in
Overall Width 1.39m/4ft 7in
Overall Height(Rails Up) 2.62m/8ft 7in
Overall Height(Rails Down) 2.09m/6ft 10in
Platform Size(Length×Width) 2.64m×1.12m/8ft 8in×3ft 8in
Platform Extension Size 0.90m/2ft 11in
Ground Clearance(Stowed/Raised) 0.10m/0.019m / 4in/1in
Wheelbase 2.24m/7ft 4in
Turning Radius(Inside/Outside) 0m/2.70m / 0in/8ft 10in
Tyres φ381×127mm
S.W.L 363kg/800lb
S.W.L On Extension 136kg/299lb
Max. Occupants 2/0
Gradeability 25%
Travel Speed(Stowed) 6.0km/h / 3.73mph
Travel Speed(Raised) 0.8km/h / 0.50mph
Max. Working Slope X-1.5°/Y-3°
Up/Down Speed 65/66sec
Overall Weight(Lithium Battery) 3500kg/7716lb
Hydraulic Tank 20L
Battery 28.8V/175Ah
Charger 28V/30A
Driving Motor 2×15VAC/0.87kW
Lifting Motor 15VAC/3.42kW
