LGMG S1012EⅡ(S3246EⅡ)
  • LGMG S1012EⅡ(S3246EⅡ)
  • LGMG S1012EⅡ(S3246EⅡ)
  • LGMG S1012EⅡ(S3246EⅡ)
Scissor Lift

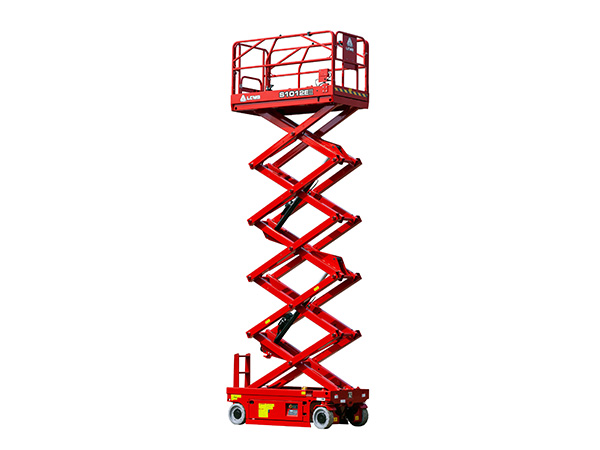

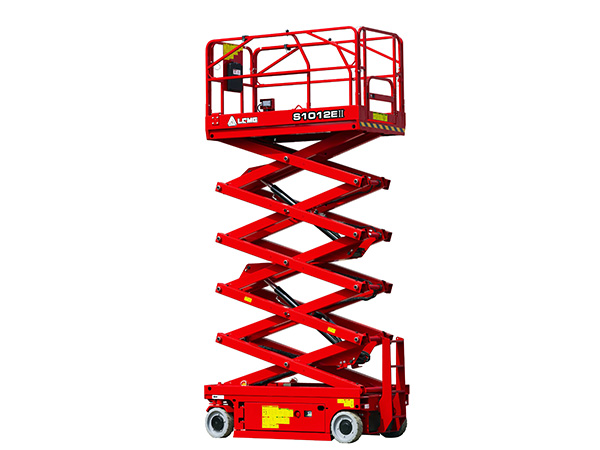

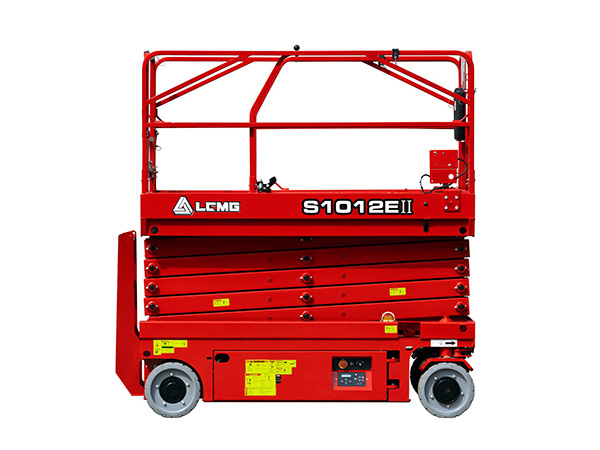

LGMG S1012EⅡ(S3246EⅡ)

  • 12m(39.4ft)
    Work Height Max.
  • 320kg(705lbs)
    Platform Capacity
  • 1.18m(3.87ft)
    Machine Width
View Complete Details
  • Overview
  • Specifications
Overview

The second generation of scissors lifts has been improved in various aspects, such as performance and design, which makes them even more convenient to maintain and safer to operate.



● Large lower control panel

● Entire range designed for Indoor and outdoor use

● Universal key components

● More convenient to maintain

● Optional lithium battery for the entire product range

STANDARD FEATURES:

Indoor and outdoor rated

Proportional control

Foldable guardrail

Emergency stop device

Manual brake release

Emergency descent

Swing-out component tray

Pothole guard

Self-lock entry gate

Tilt alarm with lift cut-out

Overload sensing system

Descent alarm with flashing beacon

All motions alarm

Full-height drive

Intelligent diagnostic system

Solid non-marking tires



OPTIONAL:

AC power to platform

Anti-collision protection

Biodegradable hydraulic oil

Maintenance-free battery

Voice alarm system

Telematics

Specifications
ModelsS1012EⅡS3246EⅡ
Measurements
Work Height Max.12m39'4''
A-Platform Height-Raised10m32'10''
B-Platform Length2.26m7'5''
C-Platform Width1.12m3'8''
D-Overall Length2.49m8'2''
E-Overall Width1.18m3'10''
F-Overall Height-Guardrails Up2.49m8'2''
G-Overall Height-Guardrails Down1.68m5'6''
H-Extension Deck0.9m2'11''
I-Wheelbase1.85m6'1'
Ground Clearance(Stowed/Raised)100/20mm4''/1''
Productivity
Max. Platform Occupants (In/out)2 (in) /1 (out)
Platform Capacity320kg705 lbs
Platform Capacity-Extension Deck120kg265 lbs
Drive HeightFull Height
Gradeability-Stowed25%
Min. Turning Radius2.45m8'
Raise/Lower Speed58/48s
Brakes Front-wheel Brake
Drive Mode4×2
Tire TypeSolid Non-marking
Tire Size380*130mm15''x5''
Ground Pressure, Tyres1355 kPa196.5 psi
Power
Power Source24V (4x6V) 240Ah, FLA
Power Source (Lithium Battery)24V  230Ah
Hydraulic System
Hydraulic Oil Capacity23L6.1gal
Weight
Machine Weight(CE/ANSI)2995kg6603 lbs
