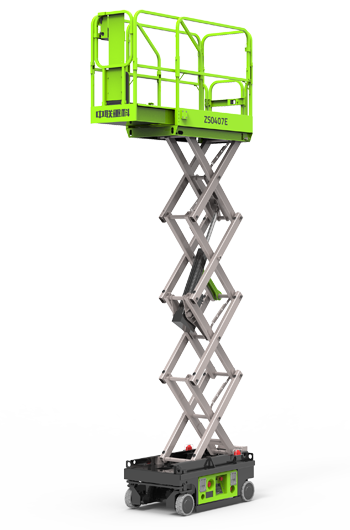

Zoomlion ZS0407E

View Complete Details

Overview

Scissor lift with 100% electric drive system, providing working conditions with no hydraulic system and no hydraulic oil leak.

CE Certified

Full-electric Drive

100% electric drive, no hydraulic system,no hydraulic oil leak

IP67 protective grade of traveling motor offers longer lifespan

No leak, Zero emission, Greener, adapt to working conditions with strict environ-mental requirement

Cost Effectiveness

Knuckles lubrication-free and mainte-nance-free

Brushless DC lifting motor, mainte-nance-free

Drawer type tray easy to service

Intelligent Connectivity

Energy recovery device, working time pershift improving by 15%

Load weighing system with high accuracy, error within 5%

Real-time lifting height display, error within 3%

Specifications

Work Height (indoor/Outdoor)	6.2m/5.6m\|20ft 4in/18ft 5in

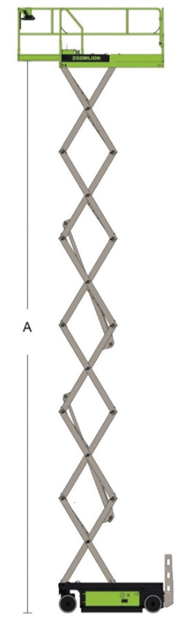

A- Platform Height-Elevated (Indoor/Outdoor)	4.2m/3.6m\|13ft 9in/11ft 10in

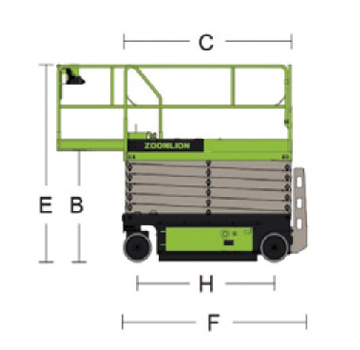

B - Platform Height-Stowed	0.95m\|3ft 1in
C - Platform Length	1.29m\|4ft 3in

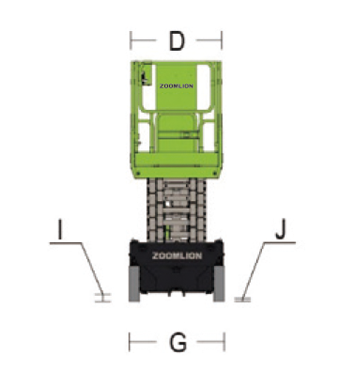

D- Platform Width	0.7m\|2ft 4in
Platform Extension	0.6m\|2ft
E-Overall Height (Rails Up)	2.05m\|6ft 9in
Overall Height (Rails Down)	1.7m\|5ft 7in
F- Overall Length	1.44m\|4ft 9in
G - Overall Width	0.76m\|2ft 6in
H - Wheelbase	1.05m\|3ft 5in
I- Ground Clearance (Stowed)	0.06m\|2.4in
J- Ground Clearance (Raised)	0.017m\|0.65in
Platform Capacity	240kg\|530lb
Capacity on Deck Extension	100kg\|220lb
Max. Number of Workers (Indoor/Outdoor)	2/1\|2/1
Drive Speed (Stowed)	4km/h\|2.5mph
Drive Speed (Raised)	0.8km/h\|0.5mph
Turning Radius (Inside)	0.4m\|1ft 4in
Turning Radius (Outside)	1.6m\|5ft 3in
Lifting Motor	24V/1.2KW\|24V/1.2KW
Drive Motor	2x0.45KW\|2x0.45KW
Up/Down Time	25s/25s\|25s/25s
Gradeability	30%(17°)\|30%(17°)
Max. Working Slope (Lateral/Vertical)	1.5°/3°\|1.5°/3°
Drive	Rear Wheels\|Rear Wheels
Brake	Rear Wheels\|Rear Wheels
Tire	Ø230mm×80mm\|Ø9in×3in
Battery	2×12V/85Ah\|2×12V/85Ah
Charger	24V/15A\|24V/15A
Gross	920kg\|2028lb
