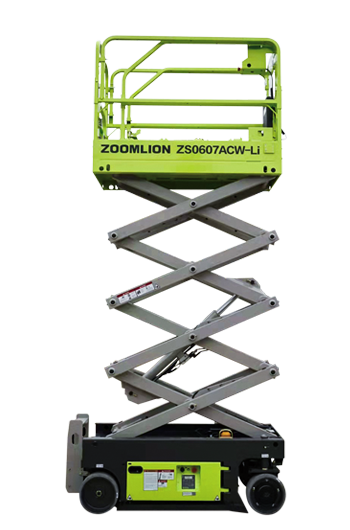

Zoomlion ZS0607ACW-Li

View Complete Details

Overview

Electric powered scissor lifts, with work height ranging from 7.8m to 15.7m, providing high efficiency and safe operation around jobsites.

CE/ANSI/CSA Certified

High Performance

AC system offers higher working efficiency

IP67 rated waterproof protection on AC wheel motors for longer lifespan

Lithium-ion batteries features long service life that the running time increases by 30%, and could apply to -20℃ cold working conditions

Cost Effectiveness

Knuckles lubrication-free and maintenance-free

AC motor full lifecycle maintenance-free

Swing-out tray easy to service

Intelligent Connectivity

Battery Management System (BMS) + Machine control system provide dual protection

Specifications

Work Height (lndoor/Outdoor)	7.8m\|25ft 7in
A- Platform Height-Elevated (Indoor/Outdoor)	5.8m\|19ft

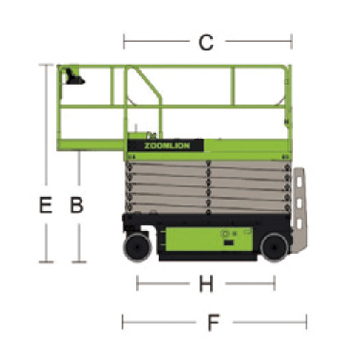

B - Platform Height -Stowed	1.05m\|3ft 5in
C- Platform Length	1.65m\|5ft 5in

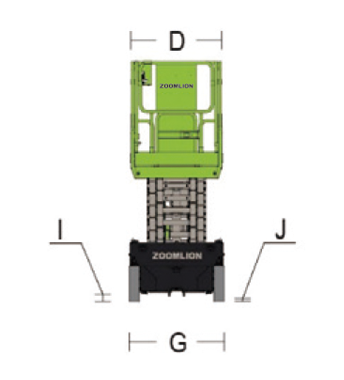

D- Platform Width	0.74m\|2ft 5in
Platform Extension	0.91m\|3ft
E- Overall Height (Rails Up)	2.20m\|7ft 3in
Overall Height (Rails Down)	1.79m\|5ft 10in
F- Overall Length	1.85m\|6ft 1in
G - Overall Width	0.81m\|2ft 8in
H - Wheelbase	1.37m\|4ft 6in
I- Ground Clearance (Stowed)	0.06m\|2.4in
J- Ground Clearance (Raised)	0.016m\|0.65in
Platform Capacity	230kg\|510lb
Capacity on Deck Extension	113kg\|250lb
Max. Number of Workers (Indoor/Outdoor)	2/1\|2/1
Drive Speed (Stowed)	4km/h\|2.5mph
Drive Speed (Raised)	0.8km/h\|0.5mph
Turning Radius (Inside)	0.1m\|4in
Turning Radius (Outside)	1.6m\|5ft 3in
Lifting Motor	24V/3.3KW\|24V/3.3KW
Drive Motor	2x0.65KW\|2x0.65KW
Up/Down Time	20s/24s\|20s/24s
Gradeability	25%(14°)\|25%(14°)
Max. Working Slope (Lateral/Vertical)	1.5°/3°\|1.5°/3°
Control	Proportional Control\|Proportional Control
Drive	Front Wheels\|Front Wheels
Brake	Front Wheels\|Front Wheels
Tire	Ø323mmx100mm\|ф13in×4in
Battery	230Ah Li-ion\|230Ah Li-ion
Charger	24V/30A\|24V/30A
Charger (option)	N/A\|N/A
Gross	1620kg\|3570lb
