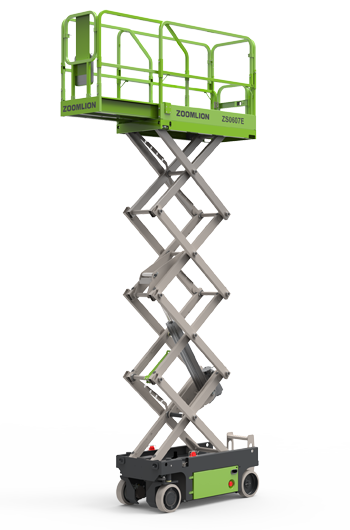

Zoomlion ZS0607E

View Complete Details

Overview

Scissor lift with 100% electric drive system, providing working conditions with no hydraulic system and no hydraulic oil leak.

CE Certified

Intelligent Connectivity

Energy recovery device, working time pershift improving by 15%

Load weighing system with high accuracy, error within 5%

Real-time lifting height display, error within 3%

Cost Effectiveness

Knuckles lubrication-free and mainte-nance-free

Brushless DC lifting motor, mainte-nance-free

Drawer type tray easy to service

Full-electric Drive

100% electric drive, no hydraulic system,no hydraulic oil leak

IP67 protective grade of traveling motor offers longer lifespan

No leak, Zero emission, Greener, adapt to working conditions with strict environ-mental requirement

Specifications

Work Height (indoor/Outdoor)	7.8m/6.4m\|25ft 7in/20ft 12in

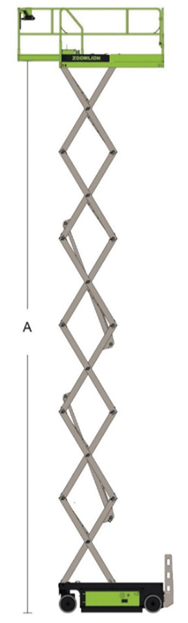

A- Platform Height-Elevated (Indoor/Outdoor)	5.8m/4.4m\|19ft /14ft 5in

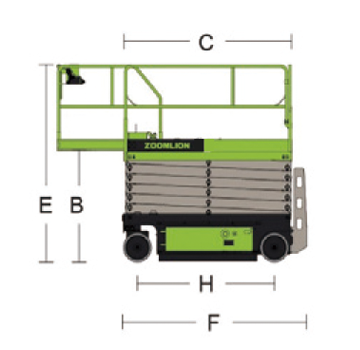

B - Platform Height-Stowed	1.05m\|3ft 5in
C - Platform Length	1.65m\|5ft 5in

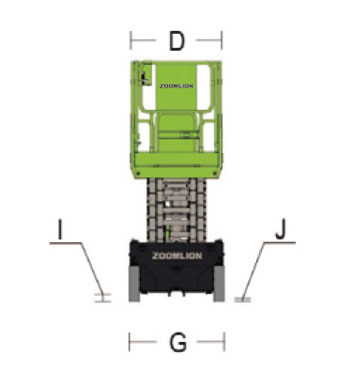

D- Platform Width	0.74m\|2ft 5in
Platform Extension	0.91m\|3ft
E-Overall Height (Rails Up)	2.20m\|7ft 3in
Overall Height (Rails Down)	1.79m\|5ft 10in
F- Overall Length	1.85m\|6ft 1in
G - Overall Width	0.76m\|2ft 6in
H - Wheelbase	1.37m\|4ft 6in
I- Ground Clearance (Stowed)	0.06m\|2.4in
J- Ground Clearance (Raised)	0.016m\|0.65in
Platform Capacity	230kg\|510lb
Capacity on Deck Extension	113kg\|250lb
Max. Number of Workers (Indoor/Outdoor)	2/1\|2/1
Drive Speed (Stowed)	4km/h\|2.5mph
Drive Speed (Raised)	0.8km/h\|0.5mph
Turning Radius (Inside)	0.1mm\|4in
Turning Radius (Outside)	1.6m\|5ft 3in
Lifting Motor	24V/1.8KW\|24V/1.8KW
Drive Motor	2x0.65KW\|2x0.65KW
Up/Down Time	25s/25s\|25s/25s
Gradeability	25%(14°)\|25%(14°)
Max. Working Slope (Lateral/Vertical)	1.5°/3°\|1.5°/3°
Drive	Front Wheels\|Front Wheels
Brake	Front Wheels\|Front Wheels
Tire	Ø323mm×100mm\|Ø13in×4in
Battery	4×6V/170Ah\|4×6V/170Ah
Charger	24V/30A\|24V/30A
Gross	1455kg\|3210lb
