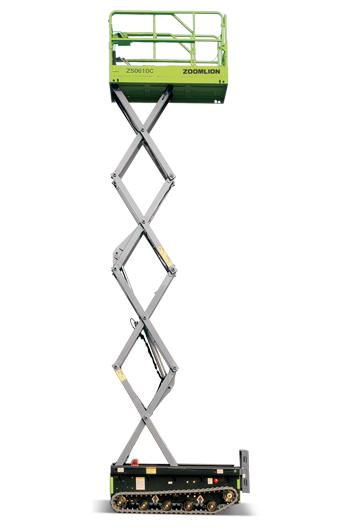

Zoomlion ZS0610C

View Complete Details

Overview

Crawler scissor lifts provide customers with new options for working at height across rough and unstable terrain.

CE Certified

High Performance

Rubber crawler provides small ground pressure and great obstacle crossing ability

Pivot steering with good maneuverability

Simple single handle control for steering and walking

Work height of 8.8m with high working efficiency (ZS06 10C only)

Cost Effectiveness

Knuckles lubrication-free and maintenance-free

AC motor full lifecycle maintenance-free

Specifications

Work Height	8.80m\|28ft 11in
A Platform Height-Elevated	6.8m\|22ft 4in
B Platform Height- -Stowed	1.12m\|3ft 8in
C Platform Length	1.94m\|6ft 4in
D Platform Width	0.95m\|3ft 1in
Platform Extension	0.91m\|3ft
E Overall Height (Rails Up)	2.26m\|7ft 5in
Overall Height (Rails Down)	1.77m\|5ft 10in
F Overall Length	2.1m\|6ft 11in
G Overall Width	1.05m\|3ft 5in
H Ground Clearance	0.127m\|4.5in
Platform Capacity	250kg\|550lb
Capacity on Deck Extension	113kg\|249lb
Max. Number of Workers	2\|2
Drive Speed (Stowed)	2km/h\|1.25mph
Drive Speed (Raised)	0km/h\|0mph
Turning Radius	0m\|0in
Drive Motor	2×1.8KW\|2×1.8KW
Up/Down Time	34s/30s\|34s/30s
Gradeability	30%(17°)\|30%(17°)
Max. Working Slope (Lateral/Vertical)	2°/2°\|2°/2°
Drive	Rear Wheels\|Rear Wheels
Brake	Rear Wheels\|Rear Wheels
Battery	4×6V/220Ah (HOPPECKE)4×12V/270Ah (QUIMO)\|4×6V/220Ah (HOPPECKE)4×12V/270Ah (QUIMO)
Charger	24V/30A\|24V/30A
Gross	1700kg\|3750lb
