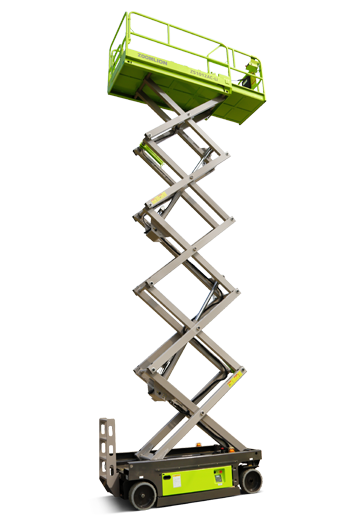

Zoomlion ZS1012AC-Li

View Complete Details

Overview

Electric powered scissor lifts, with work height ranging from 7.8m to 15.7m, providing high efficiency and safe operation around jobsites.

CE/ANSI/CSA Certified

Intelligent Connectivity

Battery Management System (BMS) + Machine control system provide dual protection

Cost Effectiveness

Knuckles lubrication-free and maintenance-free

AC motor full lifecycle maintenance-free

Swing-out tray easy to service

High Performance

AC system offers higher working efficiency

IP67 rated waterproof protection on AC wheel motors for longer lifespan

Lithium-ion batteries features long service life that the running time increases by 30%, and could apply to -20℃ cold working conditions

Specifications

Work Height (lndoor/Outdoor)	11.80m\|38ft 9in

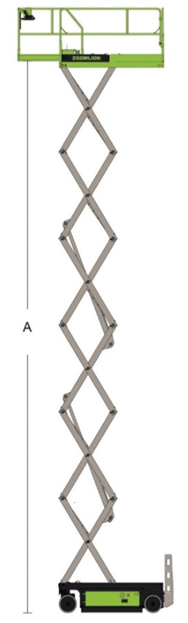

A- Platform Height-Elevated (Indoor/Outdoor)	9.80m\|32ft 2in
B - Platform Height -Stowed	1.39m\|4ft 7in
C- Platform Length	2.30m\|7ft 7in

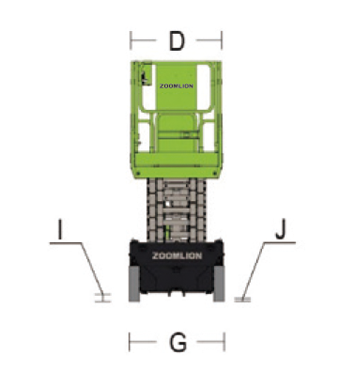

D- Platform Width	1.12m\|3ft 8in
Platform Extension	0.91m\|3ft
E- Overall Height (Rails Up)	2.53m\|48ft 4in
Overall Height (Rails Down)	2m\|6ft 7in
F- Overall Length	2.49m\|8ft 2in
G - Overall Width	1.15m\|3ft 9in
H - Wheelbase	1.85m\|6ft 1in
I- Ground Clearance (Stowed)	0.11m\|4.5in
J- Ground Clearance (Raised)	0.02m\|0.75in
Platform Capacity	350kg\|770lb
Capacity on Deck Extension	113kg\|250lb
Max. Number of Workers (Indoor/Outdoor)	2/1\|2/1
Drive Speed (Stowed)	4km/h\|2.5mph
Drive Speed (Raised)	0.8km/h\|0.5mph
Turning Radius (Inside)	0.1m\|4in
Turning Radius (Outside)	2.2m\|7ft 3in
Lifting Motor	24V/3.3KW\|24V/3.3KW
Drive Motor	2x0.75KW\|2x0.75KW
Up/Down Time	60s/35s\|60s/35s
Gradeability	25%(14°)\|25%(14°)
Max. Working Slope (Lateral/Vertical)	1.5°/3°\|1.5°/3°
Control	Proportional Control\|Proportional Control
Drive	Front Wheels\|Front Wheels
Brake	Front Wheels\|Front Wheels
Tire	Ø381mmx127mm\|ф15in×5in
Battery	160Ah Li-ion\|160Ah Li-ion
Charger	24V/30A\|24V/30A
Charger (option)	24V/60A\|24V/60A
Gross	2930kg\|6460lb
