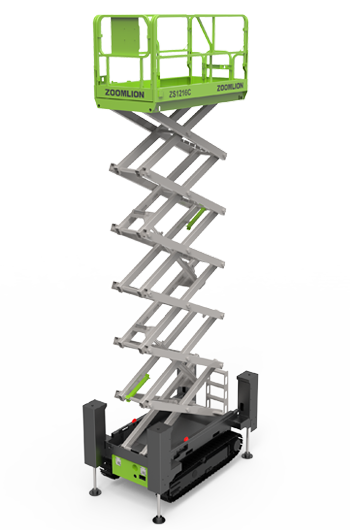

Zoomlion ZS1216C

View Complete Details

Overview

Crawler scissor lifts provide customers with new options for working at height across rough and unstable terrain.

CE Certified

High Performance

Rubber crawler provides small ground pressure and great obstacle crossing ability

Pivot steering with good maneuverability

Simple single handle control for steering and walking

Work height of 8.8m with high working efficiency (ZS06 10C only)

Cost Effectiveness

Knuckles lubrication-free and maintenance-free

AC motor full lifecycle maintenance-free

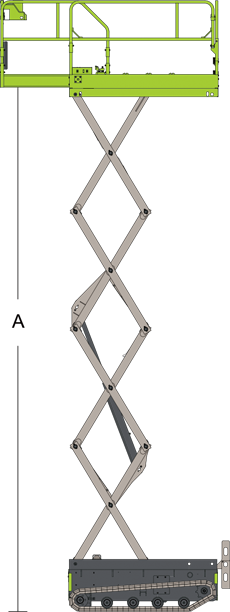

Specifications

Work Height	13.8m\|45ft3in
A Platform Height-Elevated	11.8m\|38ft9in
B Platform Height- -Stowed	1.62m\|5ft4in
C Platform Length	2.3m\|7ft7in
D Platform Width	1.12m\|3ft8in
Platform Extension	0.91m\|2ft12in
E Overall Height (Rails Up)	2.76m\|9ft1in
Overall Height (Rails Down)	2.23m\|7ft4in
F Overall Length	2.75m\|9ft
G Overall Width	1.6m\|5ft3in
H Ground Clearance	0.15m\|6in
Platform Capacity	350kg\|770lb
Capacity on Deck Extension	113kg\|249lb
Max. Number of Workers	2\|2
Drive Speed (Stowed)	2km/h\|1.25mph
Drive Speed (Raised)	0km/h\|0mph
Turning Radius	0m\|0in
Drive Motor	2×4KW\|2×4KW
Up/Down Time	62s/42s\|62s/42s
Gradeability	30%(17°)\|30%(17°)
Max. Working Slope (Lateral/Vertical)	2°/3°\|2°/3°
Drive	Rear Wheels\|Rear Wheels
Brake	Rear Wheels\|Rear Wheels
Battery	8×6V/170Ah (HOPPECKE)8×6V/180Ah (QUIMO)\|8×6V/170Ah (HOPPECKE)8×6V/180Ah (QUIMO)
Charger	48V/35A\|48V/35A
Gross	3750kg\|8270lb
