Dingli BA41ERT
  • Dingli BA41ERT
Telescopic Boom Lift

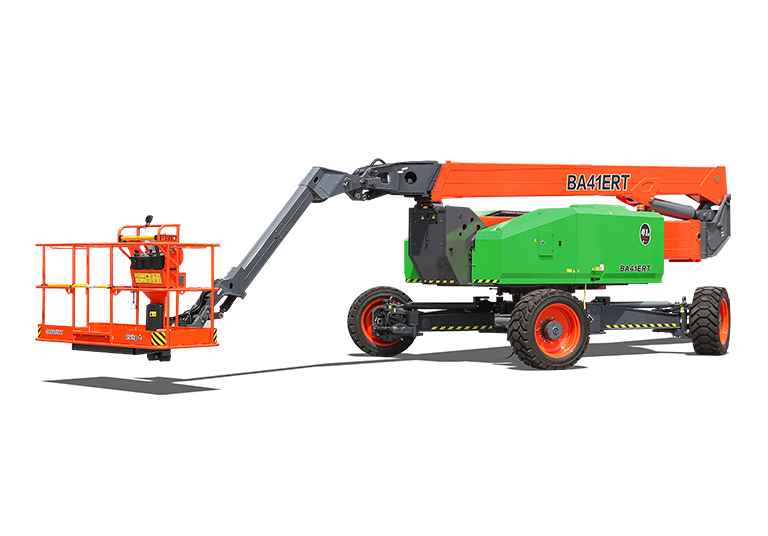

Dingli BA41ERT

  • 41.08m/134ft 9in
    Max. Working Height
  • 39.08m/128ft 2in
    Max. Platform Height
  • 19.86m/65ft 2in
    Max. Operating Range(+0.6m)
View Complete Details
  • Overview
  • Specifications
Overview

● Developed by TEUPEN, DINGLI’s German R&D center;

● Modular design horizontally & vertically, 85% of the components common in the full range, electric / diesel / hybrid models developed on the same platform;

● Patented innovation of one key in-situ axle expansion, four-wheel drive & steering, axle expansion & retraction in narrow space at will;

● 40% increase in action efficiency compare with equivalent products in the industry;

● Cat3 safety architecture, full redundancy of electronic control software & hardware;

● Jib with 230°amplitude, which can be hooked back to suit standard container transport;

● Equipped with 55.4kw high power engine, gradeability up to 45%.



Specifications
Max. Working Height 41.08m/134ft 9in
Max. Platform Height 39.08m/128ft 2in
Max. Operating Range(+0.6m) 19.86m/65ft 2in
Max. Up And Over Clearance 18.80m/61ft 8in
Max. Down Probing Depth 6.83m/22ft 5in
Overall Length(Stowed) 14.70m/48ft 3in
Overall Width(Axle Expanded) 4.17m/13ft 8in
Overall Width(Axle Retracted) 2.44m/8ft
Overall Height(Stowed) 3.10m/10ft 2in
Transport Size(Length×Width×Hight) 11.95mx2.44mx3.10m/39ft 2in×8ft×10ft 2in
Platform Size(Length×Width) 2.44m×0.91m/8ft×2ft 12in
Turntable Tailswing(Axle Expanded) 2.47m/8ft 1in
Turntable Tailswing(Axle Retracted) 3.45m/11ft 4in
Ground Clearance(Stowed/Raised) 0.40m/1ft 4in
Wheelbase(Axle Expanded) 4.07m/13ft 4in
Wheelbase(Axle Retracted) 4.27m/14ft
S.W.L(Unrestricted/Restricted) 272kg/600lb
Max. Occupants 2
Gradeability 0.45
Travel Speed(Stowed) 6.0km/h / 3.73mph
Travel Speed(Raised) 1.1km/h / 0.68mph
Max. Working Slope
Turret Rotation 360°Continuous
Platform Rotation 180°
Jib Movement 226°(+60°,-166°)
Main Boom Maximum Angle 72.23°
Turning Radius(Inside/Outside)Axle Expanded 2.99m/5.41m/10ft/17ft 9in
Turning Radius(Inside/Outside)Axle Retracted 8.27m/10.85m/27ft 1in/35ft 7in
Tyres 445/50/D710
Overall Weight 23750kg/52360lb
Lithium Battery 358.4V/228Ah
Charger 360V/30A
Emergency Power System 12V
Lifting Motor 360V/30kW
Hydraulic Tank 230L/60gal
