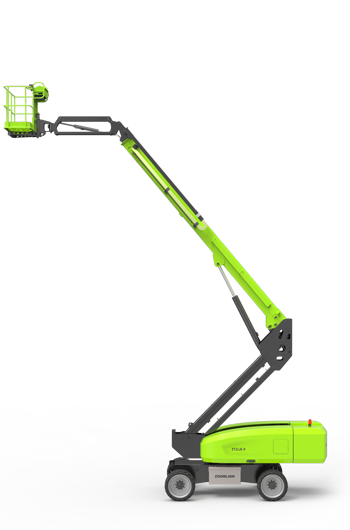

Zoomlion ZT21JE

View Complete Details

Overview

CE/ANSI/CSA Certified

Pure electric power features green, environmental protection and zero-emission

Parallel four-link and two-section/three-section (ZT18JE-V/ZT21JE-V) telescopic boom, dynamic CG and compact structure.

Brand-new rough terrain chassis provide gradeability of 45% and strong over-obstacle capacity

Accurate traveling AC system and boom movement AC driving system provide strong power and stable control, with maintenance-free motor

Common design with high reliability and easy to use

Independent auxiliary power system for safety protection

Compact design and folded jib, easy to transport

Specifications

Work Height	22.95m\|75ft 4in
Platform Height	20.95m\|68ft 9in
Horizontal Outreach	15.5m\|50ft 10in
A - Stowed Length	9.4m(6.8m)\|30ft 10in(22ft 4in)
B - Stowed Width	2.46m\|8ft 1in
C - Stowed Height	2.7m\|8ft 10in
D - Platform Length	2.44m\|8ft
E - Platform Width	0.91m\|3ft
F - Wheelbase	2.52m\|8ft 3in
Tread	2.46m\|8ft 1in
G - Ground Clearance	0.33m\|1ft 1in
Platform Capacity (Unrestricted/Restricted)	300/454kg\|660/1000lb
Drive Speed (Stowed)	5.2km/h\|3.23mph
Gradeability	45%(24°)\|45%(24°)
Turning Radius (Inside)	2.69m\|8ft 10in
Turning Radius (Outside)	5.45m\|17ft 11in
Turntable Swing	360°continuous\|360°continuous
Platform Rotation	±90°\|±90°
Tail Swing	1.7m\|5ft 7in
Jib Rotation	130°(-55°~75°)\|130°(-55°~75°)
Max. Wind Speed	12.5m/s\|28mph
Battery	48V/440Ah\|48V/440Ah
Charger	48V / 60A\|48V / 60A
Drive Motor	3.3KW\|3.3KW
Lifting Motor	10KW\|10KW
Auxiliary Power	12V DC\|12V DC
Hydraulic Tank	75L\|19 gal
Type	Foam-filled tire \|Foam-filled tire
Gross	10400kg\|22928lb
