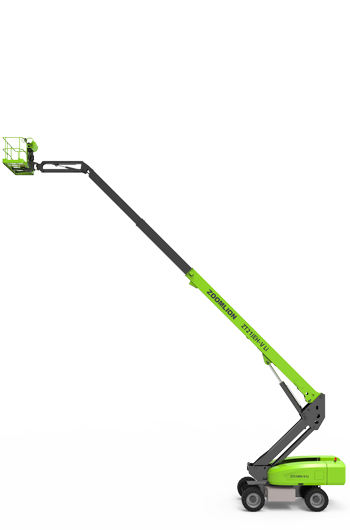

Zoomlion ZT21JEH
  • Zoomlion ZT21JEH
Telescopic Boom Lift

Zoomlion ZT21JEH

  • 22.95m
    Work Height
  • 20.95m
    Platform Height
  • 15.5m
    Horizontal Outreach
View Complete Details
  • Overview
  • Specifications
Overview

GB/CE Certified

6kw large power range extender provides power in low electric quantity  for long working hours

New off-road chassis, gradeability of 45%, strong obstacle climbing ability

Accurate and effective drive system, strong power, stable control,  and motor maintenance free

High frequency and low amplitude response control  technology, click to move with buffer

Compact design and folded jib for wrecker  and container transportation

Parallel four link and three  telescopic boom sections for  dynamic CG adjustment and  compact structure

Controller remote upgrade and  mobile parameter adjustment for  high service efficiency

Load-sensitive and engine condition  matching energy-saving technology, as  well as the boom self-weight lowering  function, energy consumption reduced by  18% compared to conventional technology

Specifications
Work Height 22.95m
Platform Height 20.95m
Horizontal Outreach 15.5m
A Overall Length (Stowed) 9.4m(6.8m)
B Overall Width (Stowed) 2.46m
C Overall Height (Stowed) 2.7m
D Platform Length 2.44m
E Platform Width 0.91m
F Wheelbase 2.52m
Track width 2.46m
G Ground Clearance 0.33m
Platform Capacity 300/454kg
Drive Speed (stowed) 5.2km/h
Gradeability 45%(24°)
Turning Radius (Inside) 2.69m
Turning Radius (Outside) 5.45m
Turntable Rotation 360° continuous
Platform Rotation ±90°
Tail Swing 1.7m
Jib Rotation 130°(﹣55°~75°)
Max. Wind Speed 12.5m/s
Battery 48V/315Ah
Range Extender 6kW
Charger 48V / 60A
Drive Motor 3.3kW
Lift Motor 10kW
Auxiliary power 12V DC
Fuel Tank 105L
Hydraulic Tank Capacity 75L
Tire Type Foam-fifilled tire
Gross 10600kg
