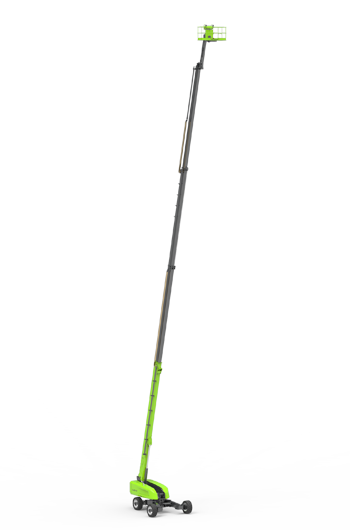

Zoomlion ZT42JEH
  • Zoomlion ZT42JEH
Telescopic Boom Lift

Zoomlion ZT42JEH

  • 44m
    Work Height
  • 42m
    Platform Height
  • 25m
    Horizontal Outreach
View Complete Details
  • Overview
  • Specifications
Overview

CE Certified

18.2kw large power range extender provides power in low electric quantity for long working hours

Light weight for low operating cost

High frequency and low amplitude response control technology, click to move with buffer

X-outrigger for large lifespan, stable on slope

Dual jib rotary actuators for large work range, folded design for short transportation length and less transportation cost

Micro-motion technology of container transport for safe and stable container shipping

Load-sensitive and engine condition matching energy-saving technology, as well as the boom self-weight lowering  function, energy consumption reduced by 18% compared to conventional technology

Controller remote upgrade and mobile parameter adjustment for high service efficiency

Specifications
Work Height 44m
Platform Height 42m
Horizontal Outreach 25m
A Overall Length (Stowed) 16.22m
B Overall Width (Stowed) 2.46m
C Overall Height (Stowed) 2.86m
D Platform Length 2.44m
E Platform Width 0.91m
F Wheelbase 3.81/4.15m
Track width 2.46m/4.07m
G Ground Clearance 0.4m
Platform Capacity 300/454kg
Drive Speed (stowed) 5km/h
Gradeability 45%(24°)
Turning Radius (Inside) 2.5m
Turning Radius (Outside) 5.65m
Turntable Rotation 360° continuous
Platform Rotation ±90°
Tail Swing 1.67m
Jib Rotation 130°(﹣55°~75°)
Max. Wind Speed 12.5m/s
Battery 80V/460Ah
Range Extender 18.2kW
Charger 80V/80A
Drive Motor 5.2kW
Lift Motor 30kW
Auxiliary power 12V DC
Fuel Tank 105L
Hydraulic Tank Capacity 245L
Tire Type Foam-fifilled tire
Gross 22120kg
