Overview

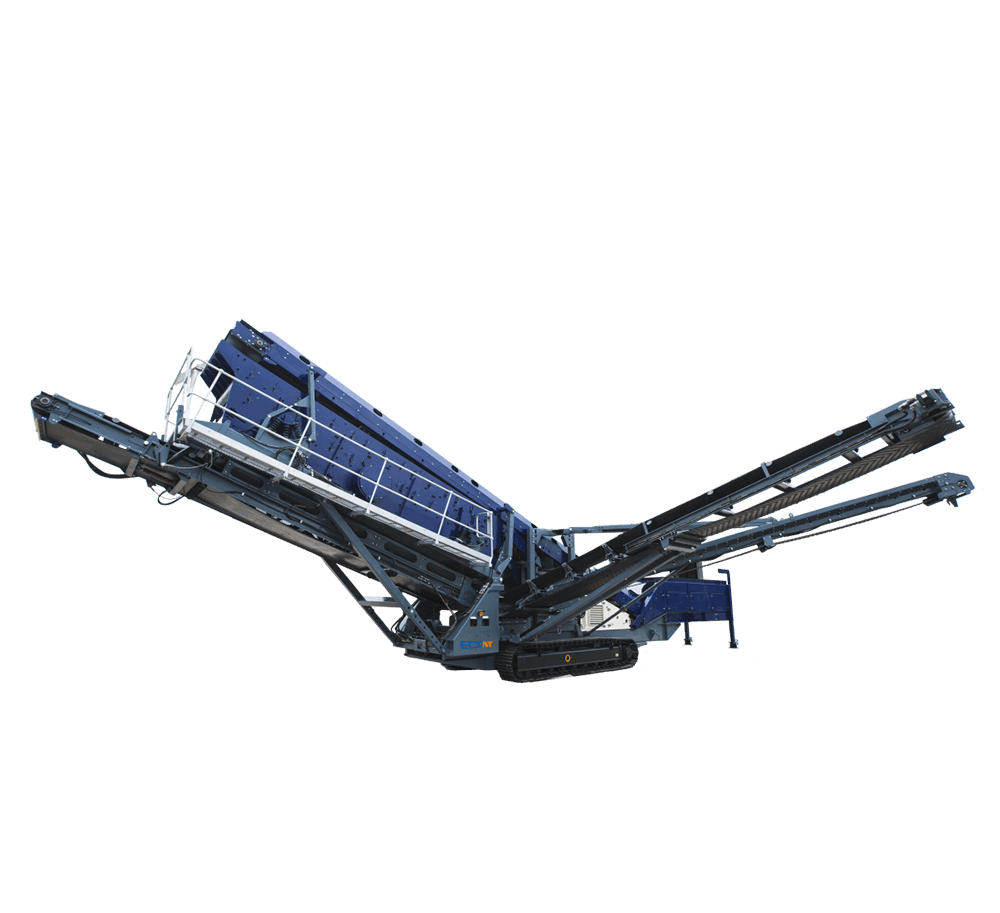

It is a high-efficiency screening equipment integrating material receiving, conveying, screening and other process equipment. Through the optimization of the process flow, it has excellent screening performance. Through the combination of different models, a powerful crushing and screening operation line can be formed to complete the multi-demand processing operations. It is widely used in mine crushing, bridge tunnel, construction engineering, construction waste recycling and other fields. It is suitable for screening and sorting materials such as granite, limestone, concrete, etc.

1. Optimize fuel efficiency;

2. Electric drive, fuel and electricity dual-purpose, adapt to a variety of complex environments;

3. User-friendly PLC control system and color screen, easy to operate;

4. Spray dust removal;

5. High-efficiency circular vibrating screen to improve screening efficiency;

6. The equipment has reliable performance and high output.

Specifications
ItemsFuel OnlyFuel and Electricity
UsageFinished sieve or raw material sieve, suitable for resource recycling of all natural stones and mine ores
Production rateBelow 32mm 200-280t/hBelow 32mm 200-280t/h
Maximum feeding size200mm200mm
Screen’s size1520×6100mm·mm1520×6100mm·mm
Level of screening33
Screening Frequency20-24HZ20-24HZ
Screen’s inclining angle13-19 degrees13-19 degrees
Power106kW90kW
WeightAround 38tAround 38t
Feeder’s size8m³8m³
Expanded size (L×W×H/mm)19500×17800×710019500×18500×7400
Transportational size (L×W×H/mm)20000×3000×350020000×3200×3800
