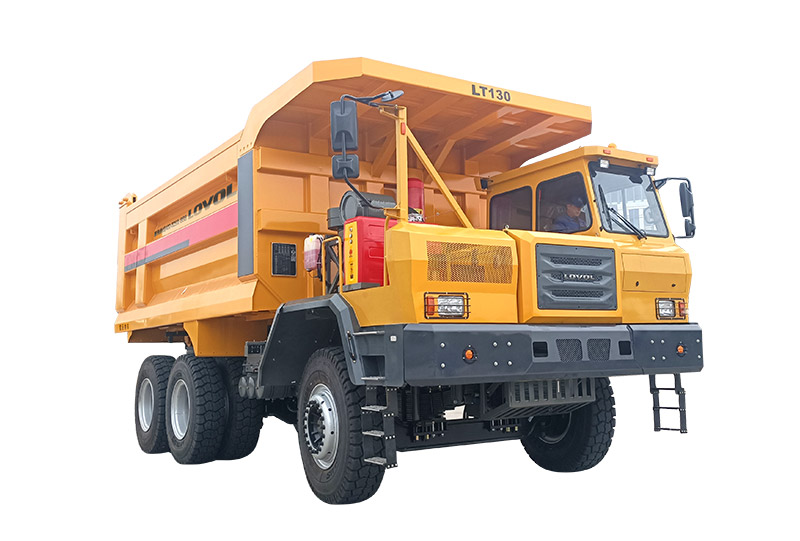

Lovol LT130
  • Lovol LT130
  • Lovol LT130
Mining Truck

Lovol LT130

  • 130000kg
    Gross Vehicle Weight
  • 90000kg
    Max.Chassis Weight
  • Stage III
    Emissions
View Complete Details
  • Overview
  • Specifications
Overview

High efficiency

 Weichai engine + Fast gearbox + Hande bridge, Weichai power assembly, high power and high efficiency; flat-mounted 42 cubic meter bucket, high efficiency.

Reliable

The front suspension adopts a five-link non-independent oil-gas suspension; the rear suspension is a balance shaft + combined V-type 8-thrust rod structure; the main beam has three layers of 10+10+8mm, with high bending and torsion resistance, a cross-sectional height of 380mm, and a low center of gravity; the whole vehicle is more reliable.

Comfort

The new narrow-body cab has large space, good vision, low noise and more comfortable driving.

Specifications
Gross Vehicle Weight 130000kg
Max.Chassis Weight 90000kg
Emissions Stage III
Dimensions(L*W*H) 10215×4050×4560mm
Struck 50(U type)m³
Wheel Base 4300+1840mm
Max.Travel Speed 38km/h
Max.Gradeability 30°
Min.Turning Diameter 26m
Min.Ground Clearance 400mm
Engine Model WP15HG770E304
Rated Power 566kW
Transmission 8DS280-FHB400
Axle Load Capacity 30/50/50t
Front Suspension Type front rolled lugs and back slide plate+pushrod structure
Rear Suspension Type Leaf spring balance suspension
Frame Width 1300mm
Tyre Model 16.00R29
