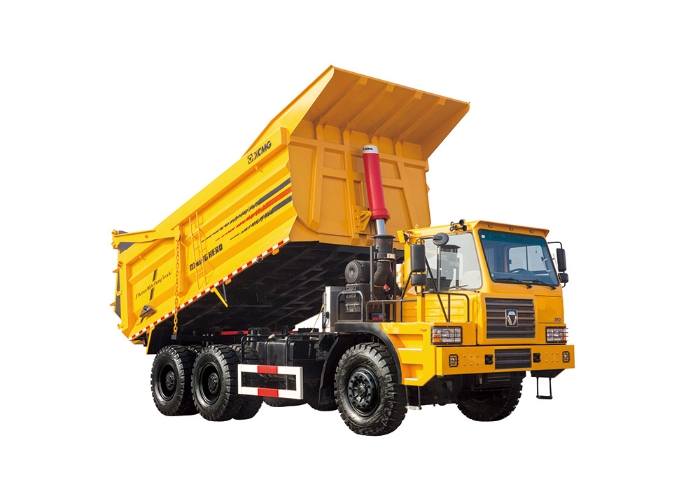

XCMG NXG5650DT
  • XCMG NXG5650DT
Off-highway Dump Truck

XCMG NXG5650DT

  • 6×4
    Drive Type
  • 25500kg
    Kerb Mass
  • 65000kg
    GVW
View Complete Details
  • Overview
  • Specifications
Overview

We have fully considered the customer demands and finalize the cnguration after thousands of high-strengh industrial assesments in diferent construction environments. Approved by national military field testing and TUV certification, the performance is highly adaptive to all complex working conditions that cannot be coped with by traditional dump truck. Our trucks are widely used for surface mining, water conservancy construction, short-distance transporation, removing mountains for filling seas or other construction projects.

Specifications
Drive Type 6×4
Kerb Mass 25500kg
GVW 65000kg
Max. Speed 45km/h
Min. Turning Diameter 9.4m
Grade Ability ≥42%
Fuel Tank 400L
Dimension 8860×3275×3740mm
Wheelbase 3800+1560mm
Min. Clearance 380mm
Approach Angle 30°
Departure Angle 48°
Cargo size 5800×3000×1600mm
Cabin Model 3.0m Left dislocation cab
Left/Right Driving LHD
AC Optional
Person Allowed in 1
Engine Model WD12G375E211
Emission Standard EUR III
Displacement 11.596L
Output Power 276KW
Max Torque Speed 1500N·m
Transmission Model 9JSD180
PTO QH50
Front Axle Model 13T
Rear Axle Model 25T
Main Reducer Ratio 11.125/13.51
Rim 10.00W-24
Tire 14.00-24NHS
