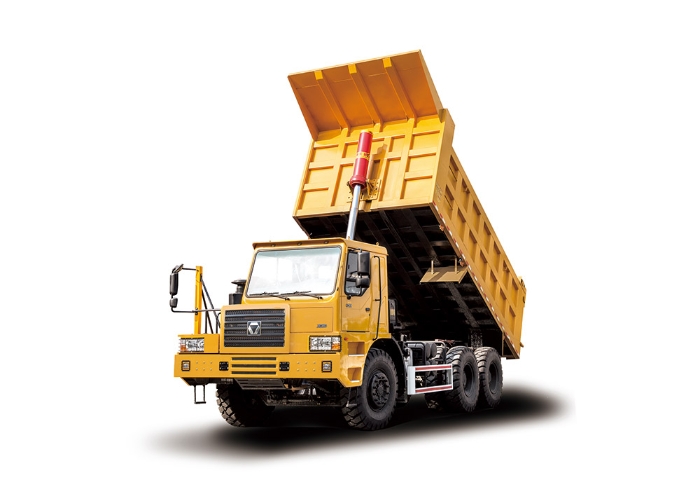

XCMG NXG5760D3T
  • XCMG NXG5760D3T
Off-highway Dump Truck

XCMG NXG5760D3T

  • 6×4
    Drive Type
  • 26000kg
    Kerb Mass
  • 76000kg
    GVW
View Complete Details
  • Overview
  • Specifications
Overview

We have fully considered the customer demands and finalize the cnguration after thousands of high-strengh industrial assesments in diferent construction environments. Approved by national military field testing and TUV certification, the performance is highly adaptive to all complex working conditions that cannot be coped with by traditional dump truck. Our trucks are widely used for surface mining, water conservancy construction, short-distance transporation, removing mountains for filling seas or other construction projects.

Specifications
Drive Type 6×4
Kerb Mass 26000kg
GVW 76000kg
Max. Speed 50km/h
Min. Turning Diameter 9.6m
Grade Ability ≥40%
Fuel Tank 400L
Dimension 8875×3335×3915mm
Wheelbase 3900+1600mm
Min. Clearance 360mm
Approach Angle 32°
Departure Angle 45°
Cargo size 6000×3150×1700mm
Cabin Model 3.0m Left dislocation cab
Left/Right Driving LHD
AC Optional
Person Allowed in 1
Engine Model WD12G430E310
Emission Standard EUR III
Displacement 11.596L
Output Power 316KW
Max Torque Speed 1870N·m
Transmission Model 9JSD220
PTO QH70
Front Axle Model 16T
Rear Axle Model 30T
Main Reducer Ratio 11.125/13.51
Rim 10.00-25
Tire 14.00-25
