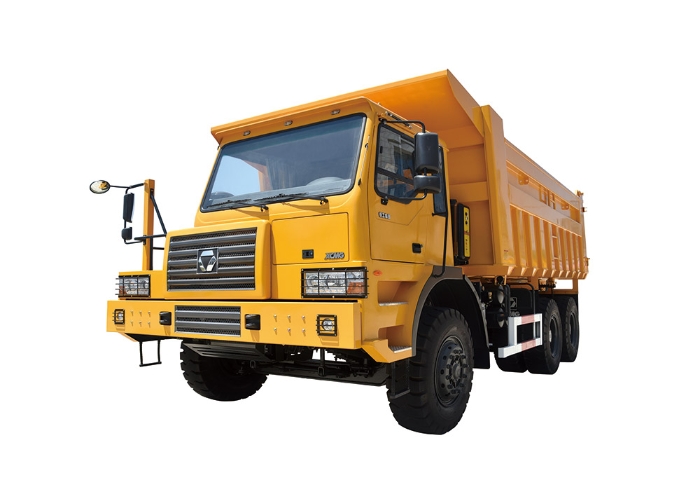

XCMG NXG5900D3T (WP12G430E310)
  • XCMG NXG5900D3T (WP12G430E310)
Off-highway Dump Truck

XCMG NXG5900D3T (WP12G430E310)

  • 6×4
    Drive Type
  • 32000kg
    Kerb Mass
  • 90000kg
    GVW
View Complete Details
  • Overview
  • Specifications
Overview

We have fully considered the customer demands and finalize the cnguration after thousands of high-strengh industrial assesments in diferent construction environments. Approved by national military field testing and TUV certification, the performance is highly adaptive to all complex working conditions that cannot be coped with by traditional dump truck. Our trucks are widely used for surface mining, water conservancy construction, short-distance transporation, removing mountains for filling seas or other construction projects.

Specifications
Drive Type 6×4
Kerb Mass 32000kg
GVW 90000kg
Max. Speed 47km/h
Min. Turning Diameter 9.6m
Grade Ability ≥37%
Fuel Tank 500L
Dimension 9073×3322×4020mm
Wheelbase 3900+1600mm
Min. Clearance 380mm
Approach Angle 35°
Departure Angle 45°
Cargo size 6000×3200×1800mm
Cabin Model 3.3m Left dislocation cab
Left/Right Driving LHD
AC Optional
Person Allowed in 1
Engine Model WP12G430E310
Emission Standard EUR III
Displacement 11.596L
Output Power 316KW
Max Torque Speed 1870N·m
Transmission Model 7DS200K
PTO QH70
Front Axle Model 19T
Rear Axle Model 35T
Main Reducer Ratio 11.125/13.51
Rim 10.00W-25
Tire 14.00-25
