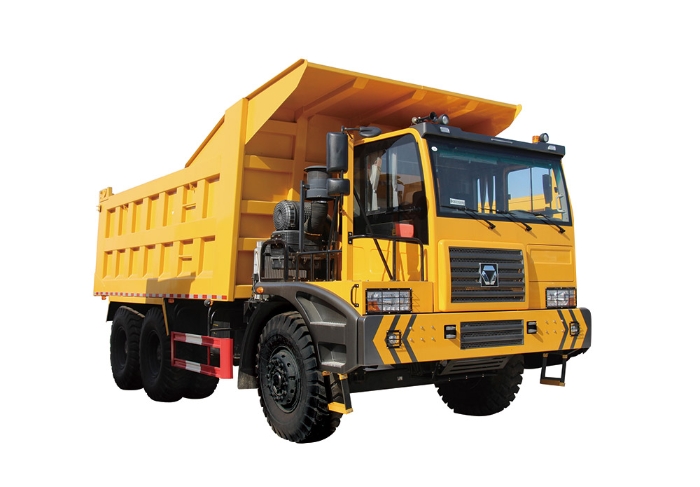

XCMG NXG5900D3T (WP12G460E310)
  • XCMG NXG5900D3T (WP12G460E310)
Off-highway Dump Truck

XCMG NXG5900D3T (WP12G460E310)

  • 6×4
    Drive Type
  • 33000kg
    Kerb Mass
  • 90000kg
    GVW
View Complete Details
  • Overview
  • Specifications
Overview

We have fully considered the customer demands and finalize the cnguration after thousands of high-strengh industrial assesments in diferent construction environments. Approved by national military field testing and TUV certification, the performance is highly adaptive to all complex working conditions that cannot be coped with by traditional dump truck. Our trucks are widely used for surface mining, water conservancy construction, short-distance transporation, removing mountains for filling seas or other construction projects.

Specifications
Drive Type 6×4
Kerb Mass 33000kg
GVW 90000kg
Max. Speed 48km/h
Min. Turning Diameter 9.9m
Grade Ability ≥41%
Fuel Tank 500L
Dimension 9235×3485×4005mm
Wheelbase 3850+1700mm
Min. Clearance 410mm
Approach Angle 38°
Departure Angle 50°
Cargo size 6200×3300×1650mm
Cabin Model 3.3m Left dislocation cab
Left/Right Driving LHD
AC Optional
Person Allowed in 1
Engine Model WP12G460E310
Emission Standard EUR III
Displacement 11.596L
Output Power 338KW
Max Torque Speed 2000N·m
Transmission Model 9JSD220B
PTO QH70
Front Axle Model 19T
Rear Axle Model 35T
Main Reducer Ratio 15.66/17.62
Rim 11.25/12.0-25
Tire 16.00-25
