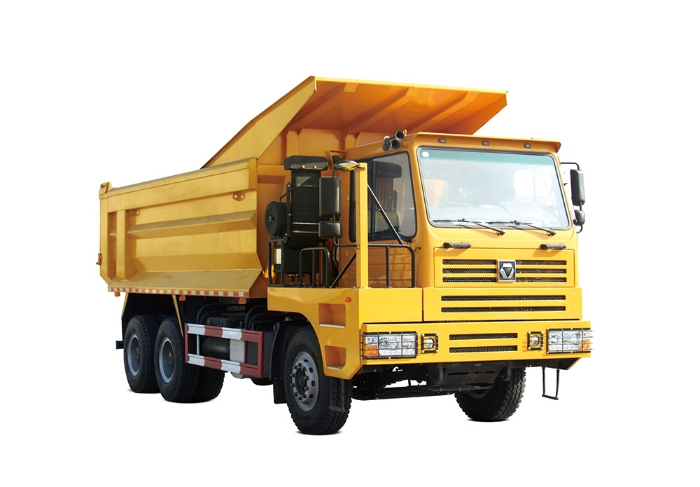

XCMG XGA5470D3TQ
  • XCMG XGA5470D3TQ
Off-highway Dump Truck

XCMG XGA5470D3TQ

  • 6×6
    Drive Type
  • 19000kg
    Kerb Mass
  • 47000kg
    GVW
View Complete Details
  • Overview
  • Specifications
Overview

We have fully considered the customer demands and finalize the cnguration after thousands of high-strengh industrial assesments in diferent construction environments. Approved by national military field testing and TUV certification, the performance is highly adaptive to all complex working conditions that cannot be coped with by traditional dump truck. Our trucks are widely used for surface mining, water conservancy construction, short-distance transporation, removing mountains for filling seas or other construction projects.

Specifications
Drive Type 6×6
Kerb Mass 19000kg
GVW 47000kg
Max. Speed 65km/h
Min. Turning Diameter 9.4m
Grade Ability ≥60%
Fuel Tank 300L
Dimension 8755×2600×3650mm
Wheelbase 4000+1400mm
Min. Clearance 380mm
Approach Angle 23°
Departure Angle 36°
Cargo size 5800×2400×1500mm
Cabin Model 2.5m Left dislocation cab
Left/Right Driving LHD
AC Optional
Person Allowed in 1
Engine Model WP10.340E32
Emission Standard EUR III
Displacement 9.726L
Output Power 250KW
Max Torque Speed 1250N·m
Transmission Model 9JSD150
PTO QH50
Front Axle Model 9.5T
Rear Axle Model 16T
Main Reducer Ratio 6.733
Rim 8.5V-20
Tire 12.00R20
