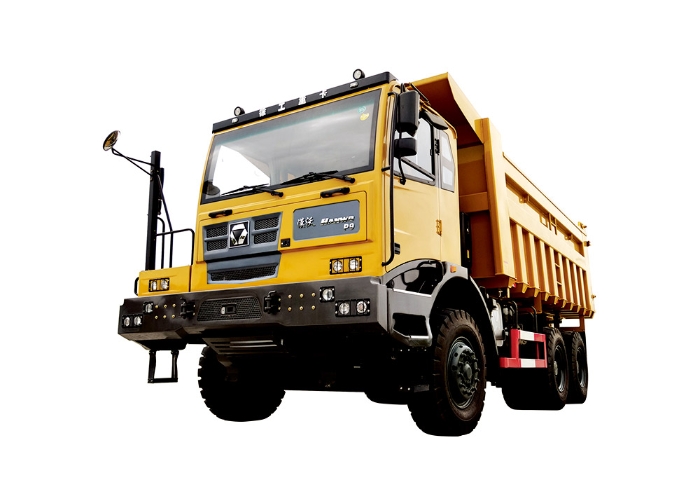

XCMG XGA5902D3T (WP12G430E310)
  • XCMG XGA5902D3T (WP12G430E310)
Off-highway Dump Truck

XCMG XGA5902D3T (WP12G430E310)

  • 6×4
    Drive Type
  • 32000kg
    Kerb Mass
  • 90000kg
    GVW
View Complete Details
  • Overview
  • Specifications
Overview

We have fully considered the customer demands and finalize the cnguration after thousands of high-strengh industrial assesments in diferent construction environments. Approved by national military field testing and TUV certification, the performance is highly adaptive to all complex working conditions that cannot be coped with by traditional dump truck. Our trucks are widely used for surface mining, water conservancy construction, short-distance transporation, removing mountains for filling seas or other construction projects.

Specifications
Drive Type 6×4
Kerb Mass 32000kg
GVW 90000kg
Max. Speed 39km/h
Min. Turning Diameter 11.5m
Grade Ability ≥35%
Fuel Tank 500L
Dimension 9045×3400×4000mm
Wheelbase 3800+1600mm
Min. Clearance 380mm
Approach Angle 35°
Departure Angle 42°
Cargo size 6000×3200×1600mm
Cabin Model K20
Left/Right Driving LHD
AC Optional
Person Allowed in 1
Engine Model WP12G430E310
Emission Standard EUR III
Displacement 11.596L
Output Power 316KW
Max Torque Speed 1870N·m
Transmission Model 7DS200
PTO QH70
Front Axle Model 19T
Rear Axle Model 35T
Main Reducer Ratio 10.84/14.1
Rim 10.00W-25
Tire 14.00-25NHS
