| OD×length | Φ1650x4760mm |
| Power | 22x2kW |
| Max. torque | 188kN·m |
| Max. speed | 4.4r/min |
| Steering thrust | 63x4t |
| Steering angle | 2.5° |
| Mud pipe diameter | Φ100mm |

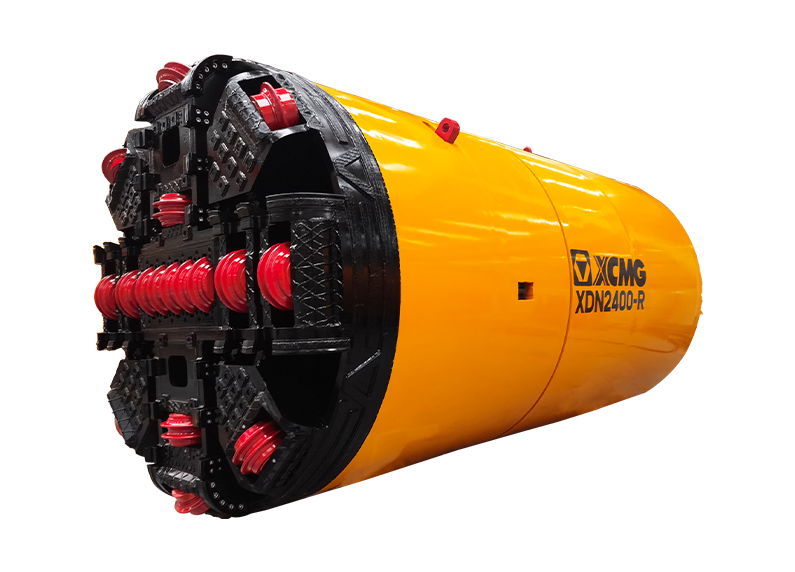

1. Electric drive rock pipe jacking machine is mainly suitable for gravel, pebbles, a small amount of boulders and rock strata.
2. The cutterhead has high power and is equipped with a large-torque reduction gearbox, which has strong rock breaking ability.
3. The main jacking has a fine adjustment mode, which can realize millimeter-level accuracy adjustment per minute and meet the construction requirements of extremely hard rock strata.
4. The mud discharge system can realize five mud circulation modes: internal and external circulation, bypass, external water supply and direct drainage, effectively solving the problems of slag deposition and large frictional force of pipeline.
5. It is equipped with a telescopic anti-rotation device to effectively solve the problem of easy rotation of the machine head during construction in rock strata.
| OD×length | Φ1650x4760mm |
| Power | 22x2kW |
| Max. torque | 188kN·m |
| Max. speed | 4.4r/min |
| Steering thrust | 63x4t |
| Steering angle | 2.5° |
| Mud pipe diameter | Φ100mm |
