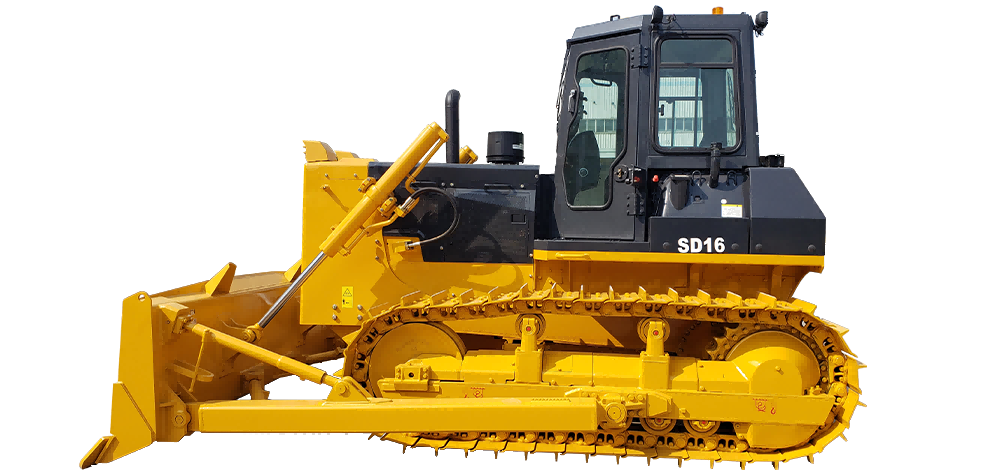

Shantui SD16
  • Shantui SD16
Bulldozer

Shantui SD16

  • 16400kg
    Overall weight
  • WEICHAI WD10G178E25
    Engine brand
  • 131/1850kW/rpm
    Rated power/rated speed
View Complete Details
  • Overview
  • Specifications
Overview

Configuration selling point

Shantui’s self-manufactured drive system perfectly aligns with the engine curve, resulting in substantial traction and enhanced transmission efficiency. Shantui’s self-developed four wheels and one track are built to be durable;

Ease of maintenance and operation comfort

The openable side guard offers a spacious area and the reasonable layout of filter elements facilitates convenient maintenance. The hexahedral cab is designed with ergonomic considerations and provides a spacious interior and wide field of view.

Adaptability to diverse working conditions

The machine is equipped with a straight tilt blade for enhanced cutting force, making it well-suited for diverse working conditions such as clay, frozen soil, and sandy soil. The chassis system is stable with large ground clearance, demonstrating excellent passability;
Specifications
Overall weight 16400kg
Engine brand WEICHAI WD10G178E25
Rated power/rated speed 131/1850kW/rpm
Machine external dimensions 5140*3455*3032mm
Track center distance 1880mm
Track shoe width 510/560/610mm
Ground contact length 2430mm
Fuel tank capacity 315L
Blade type Straight tilting/U-shaped Blade
Blade capacity 3.2/4.8m³
Emissions Eu stageⅡIndicated as per international standards
