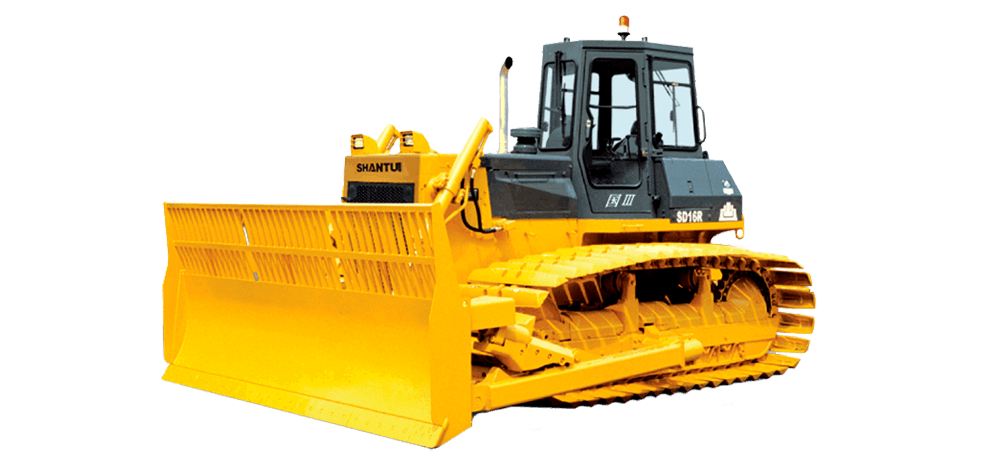

Shantui SD16R
  • Shantui SD16R
Bulldozer

Shantui SD16R

  • 18460kg
    Overall weight
  • WEICHAI WD10G178E25
    Engine brand
  • 131/1850kW/rpm
    Rated power/rated speed
View Complete Details
  • Overview
  • Specifications
Overview

Configuration selling point

Shantui’s self-manufactured drive system perfectly aligns with the engine curve, resulting in substantial traction and enhanced transmission efficiency. Shantui’s self-developed four wheels and one track are built to be durable;

Ease of maintenance and operation comfort

The openable side guard offers a spacious area and the reasonable layout of filter elements facilitates convenient maintenance. The hexahedral cab is designed with ergonomic considerations and provides a spacious interior and wide field of view.

Adaptability to diverse working conditions

Featuring a sanitation blade, large ground clearance, and an anti-entanglement device, the machine demonstrates excellent passability. The well-sealed cab makes it well-suited for sanitation operations;
Specifications
Overall weight 18460kg
Engine brand WEICHAI WD10G178E25
Rated power/rated speed 131/1850kW/rpm
Machine external dimensions 5262*4150*3074mm
Track center distance 2300mm
Track shoe width 1100/660mm
Ground contact length 2935mm
Fuel tank capacity 315L
Blade type Waste handling blade
Blade capacity 8.3m³
Emissions Eu stageⅡIndicated as per international standards
