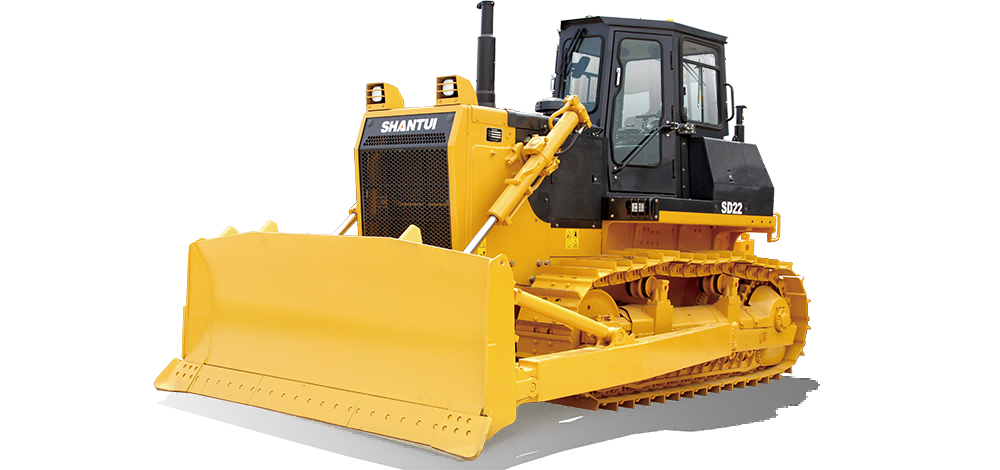

Shantui SD22
  • Shantui SD22
Bulldozer

Shantui SD22

  • 23450kg
    Overall weight
  • Cummins NT855-C280S10/Weichai WP12G240E306
    Engine brand
  • 175/1800kW/rpm
    Rated power/rated speed
View Complete Details
  • Overview
  • Specifications
Overview

Configuration selling point

Shantui’s self-developed chassis system is built to be durable. Shantui’s self-developed drive system has been extensively proven in the market, exhibiting commendable durability. When combined with the dedicated engine, it delivers substantial traction;

Ease of maintenance and operation comfort

The openable side guard offers a spacious area and the reasonable layout of filter elements and hydraulic components facilitate convenient maintenance. The hexahedral cab is designed with ergonomic considerations and provides a spacious interior and wide field of view;

Adaptability to diverse working conditions

The machine is equipped with a straight tilt blade for enhanced cutting force. It offers the option of incorporating a three-tooth ripper to showcase its remarkable adaptability to diverse challenging conditions such as clay, hardened frozen soil, and more.
Specifications
Overall weight 23450kg
Engine brand Cummins NT855-C280S10/Weichai WP12G240E306
Rated power/rated speed 175/1800kW/rpm
Machine external dimensions 6060*4200*3402mm
Track center distance 2000mm
Track shoe width 560/610/660mm
Ground contact length 2430mm
Fuel tank capacity 450L
Blade type Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade
Blade capacity 4.6m³
Emissions Eu stageⅡIndicated as per international standards
