Configuration selling point

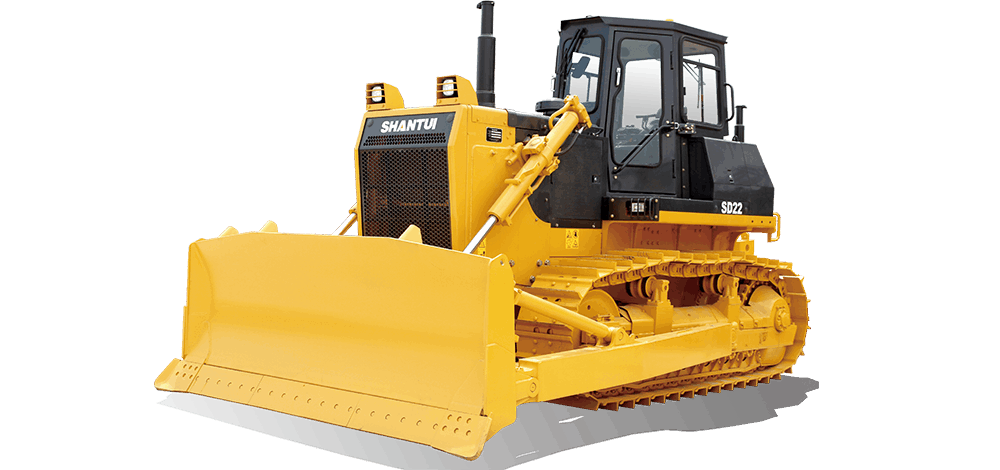

Shantui chassis system is built to be durable. Shantui’s self-developed drive system has been extensively proven in the market, exhibiting commendable durability. When combined with the dedicated engine, it delivers substantial traction;Ease of maintenance and operation comfort
The openable side guard offers a spacious area and the reasonable layout of filter elements and hydraulic components facilitate convenient maintenance. The hexahedral cab is designed with ergonomic considerations and provides a spacious interior and wide field of view;Adaptability to diverse working conditions
The machine is equipped with a straight tilt blade for enhanced cutting force, demonstrating its remarkable adaptability to diverse challenging conditions such as clay, hardened frozen soil, and more. It has a longer ground contact length, exhibiting better passability.| Overall weight | 24600kg |
| Engine brand | Cummins NT855-C280S10/Weichai WP12G240E306 |
| Rated power/rated speed | 175/1800kW/rpm |
| Machine external dimensions | 5495*3725*3402mm |
| Track center distance | 2000mm |
| Track shoe width | 560/610/660mm |
| Ground contact length | 3050mm |
| Fuel tank capacity | 450L |
| Blade type | Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade |
| Blade capacity | 4.6/3.4/5.8/6.7m³ |
| Emissions | Eu stageⅡIndicated as per international standards |
