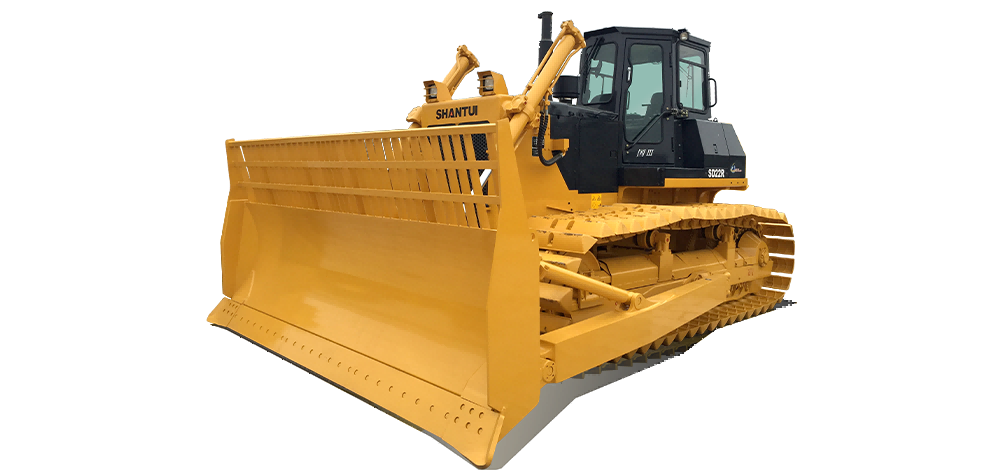

Shantui SD22R
  • Shantui SD22R
Bulldozer

Shantui SD22R

  • 26000kg
    Overall weight
  • Cummins NT855-C280S10/Weichai WP12G240E306
    Engine brand
  • 175/1800kW/rpm
    Rated power/rated speed
View Complete Details
  • Overview
  • Specifications
Overview

Configuration selling point

Shantui chassis system is built to be durable. Shantui’s self-developed drive system has been extensively proven in the market, exhibiting commendable durability. When combined with the dedicated engine, it delivers substantial traction;

Ease of maintenance and operation comfort

The openable side guard offers a spacious area and the reasonable layout of filter elements and hydraulic components facilitate convenient maintenance. The hexahedral cab is designed with ergonomic considerations and provides a spacious interior and wide field of view;

Adaptability to diverse working conditions

Featuring a large chassis ground clearance and an anti-entanglement device, the machine delivers outstanding passability. It is equipped with a sanitation blade and provides the option for a ripper. The cab is well-sealed, ensuring its suitability for sanitation working conditions.
Specifications
Overall weight 26000kg
Engine brand Cummins NT855-C280S10/Weichai WP12G240E306
Rated power/rated speed 175/1800kW/rpm
Machine external dimensions 6290*4365*3402mm
Track center distance 2250mm
Track shoe width 910mm
Ground contact length 3480mm
Fuel tank capacity 450L
Blade type Waste handing
Blade capacity 11.8m³
Emissions Eu stageⅡIndicated as per international standards
