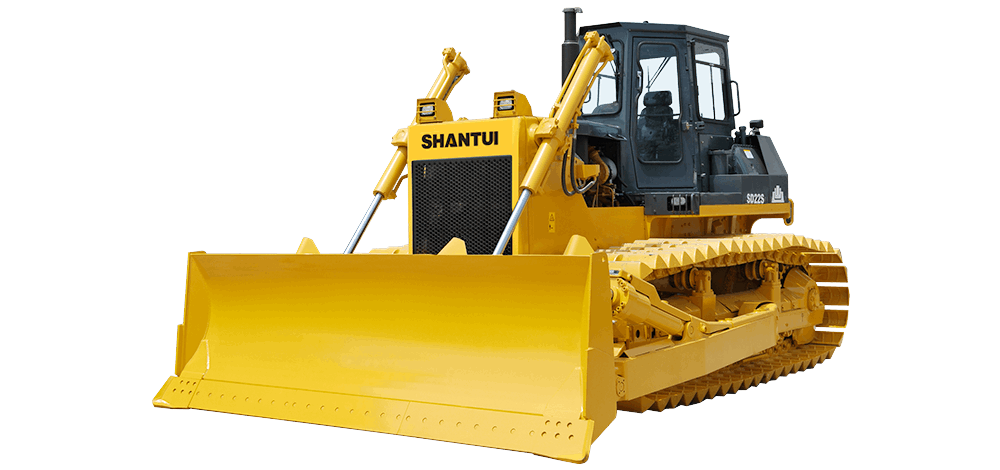

Shantui SD22S
  • Shantui SD22S
Bulldozer

Shantui SD22S

  • 25700kg
    Overall weight
  • Cummins NT855-C280S10/Weichai WP12G240E306
    Engine brand
  • 175/1800kW/rpm
    Rated power/rated speed
View Complete Details
  • Overview
  • Specifications
Overview

Configuration selling point

Shantui’s self-developed chassis system is built to be durable. Shantui’s self-developed drive system has been extensively proven in the market. Equipped with the dedicated engine, the machine delivers substantial traction and exceptional efficiency;

Ease of maintenance and operation comfort

The openable side guard offers a spacious area and the reasonable layout of filter elements and hydraulic components facilitate convenient maintenance. The hexahedral cab is designed with ergonomic considerations and provides a spacious interior and wide field of view;

Adaptability to diverse working conditions

The machine is equipped with a straight tilt blade and offers the option of incorporating a three-tooth ripper to showcase its remarkable adaptability to diverse working conditions. With its large ground contact area and excellent passability, the machine can operate in marsh environments without getting stuck, perfectly suited for wetland environments.
Specifications
Overall weight 25700kg
Engine brand Cummins NT855-C280S10/Weichai WP12G240E306
Rated power/rated speed 175/1800kW/rpm
Machine external dimensions 6290*4365*3402mm
Track center distance 2250mm
Track shoe width 910mm
Ground contact length 3480mm
Fuel tank capacity 450L
Blade type Straight tilting blade
Blade capacity 5.2m³
Emissions Eu stageⅡIndicated as per international standards
