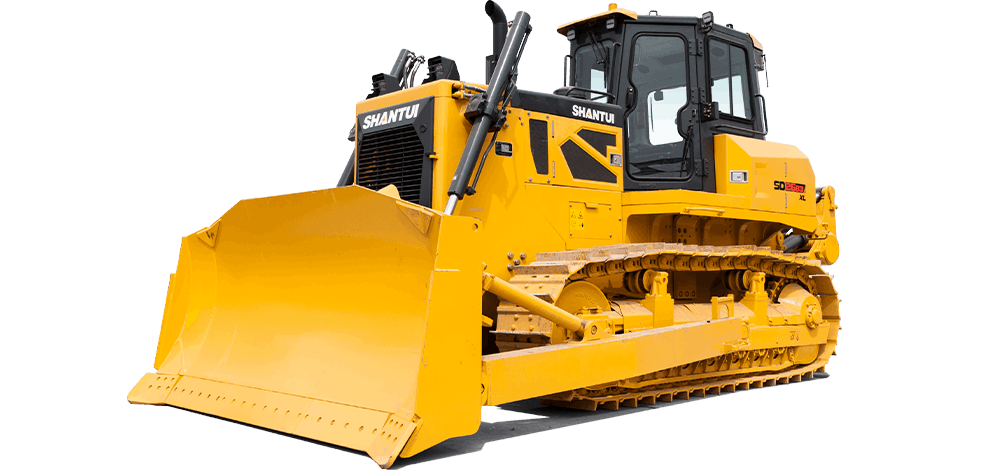

Shantui SD26-B3 XL
  • Shantui SD26-B3 XL
Bulldozer

Shantui SD26-B3 XL

  • 24200kg
    Overall weight
  • Cummins
    Engine brand
  • 206/1900kW/rpm
    Rated power/rated speed
View Complete Details
  • Overview
  • Specifications
Overview

Configuration selling point

Equipped with the dedicated engine, featuring efficient turbocharging and scientific matching, the machine delivers more robust performance. Shantui’s self-developed chassis system offers a longer service life compared to its competitors;

Ease of maintenance and operation comfort

The working valve elements of the hydraulic system are externally placed to facilitate easy maintenance. The hexahedral cab that is designed with ergonomic considerations provides a spacious interior, excellent visibility, and more comfortable operation.

Adaptability to diverse working conditions

With its long ground contact length, large ground clearance, and stable travel, the machine delivers excellent passability. With a greater capacity brought by the semi-U blade, it delivers enhanced operational efficiency and demonstrates remarkable adaptability to diverse working conditions.
Specifications
Overall weight 24200kg
Engine brand Cummins
Rated power/rated speed 206/1900kW/rpm
Machine external dimensions 5980x3720x3460mm
Track center distance 2000mm
Track shoe width 610/660mm
Ground contact length 3050mm
Fuel tank capacity 450L
Blade type Straight/Angle/U-shape/Semi-U balde
Blade capacity 4.6/3.4/5.8/6.7m³
Emissions Eu stageⅢAIndicated as per international standards
