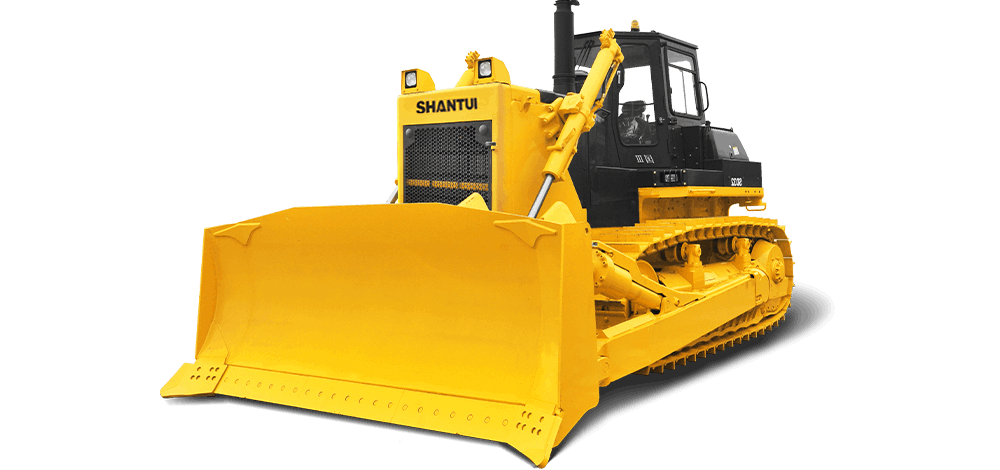

Shantui SD32
  • Shantui SD32
Bulldozer

Shantui SD32

  • 39700kg
    Overall weight
  • Cummins
    Engine brand
  • 257/2000kW/rpm
    Rated power/rated speed
View Complete Details
  • Overview
  • Specifications
Overview

Configuration selling point

Equipped with the dedicated engine, paired with Shantui’s self-developed transmission, and the incorporation of Shantui four wheels and one track, the machine demonstrates greater traction and enhanced operational efficiency;

Ease of maintenance and operation comfort

The openable side guard offers a spacious area and the reasonable layout of filter elements and hydraulic components facilitate convenient maintenance. The hexahedral cab provides a more spacious interior and wider field of view.

Adaptability to diverse working conditions

The machine is equipped with a straight tilt blade for enhanced cutting force, making it well-suited for diverse materials such as clay and frozen soil. With large ground clearance, the machine demonstrates excellent passability.
Specifications
Overall weight 39700kg
Engine brand Cummins
Rated power/rated speed 257/2000kW/rpm
Machine external dimensions 8650*4130*3760mm
Track center distance 2140mm
Track shoe width 560/610/660/710mm
Ground contact length 3150mm
Fuel tank capacity 640L
Blade type Straight tilting blade , Angle Blade and Semi-U blade
Blade capacity 7.2/4.8/9m³
Emissions Eu stageⅡIndicated as per international standards
