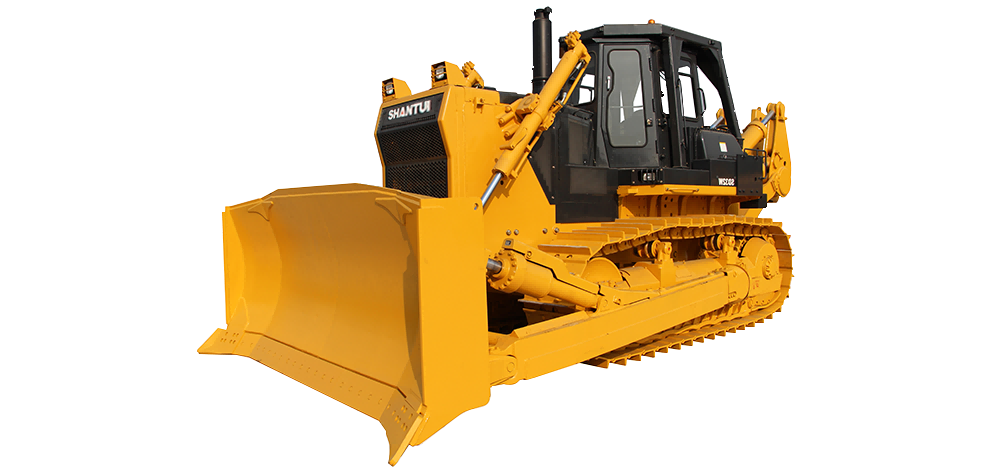

Shantui SD32W
  • Shantui SD32W
Bulldozer

Shantui SD32W

  • 40900kg
    Overall weight
  • Cummins
    Engine brand
  • 257/2000kW/rpm
    Rated power/rated speed
View Complete Details
  • Overview
  • Specifications
Overview

Configuration selling point

Equipped with the dedicated engine and paired with Shantui’s self-developed transmission, along with the durable and reliable Shantui chassis system, the machine demonstrates greater traction and enhanced operational efficiency;

Ease of maintenance and operation comfort

The openable side guard offers a spacious area and the reasonable layout of filter elements and hydraulic components facilitate convenient maintenance. The hexahedral cab provides a more spacious interior and wider field of view.

Adaptability to diverse working conditions

Designed with enhancements specifically for rock working conditions, the machine is equipped with a rock blade, heavy-duty tracks, and high-performance materials to ensure superior wear resistance, durability, and exceptional passability, making it well-suited for harsh operating environments.
Specifications
Overall weight 40900kg
Engine brand Cummins
Rated power/rated speed 257/2000kW/rpm
Machine external dimensions 8650*4130*3760mm
Track center distance 2140mm
Track shoe width 560/610/660/710mm
Ground contact length 3150mm
Fuel tank capacity 640L
Blade type Straight tilting blade , Semi-U blade
Blade capacity 7.2/9m³
Emissions Eu stageⅡIndicated as per international standards
