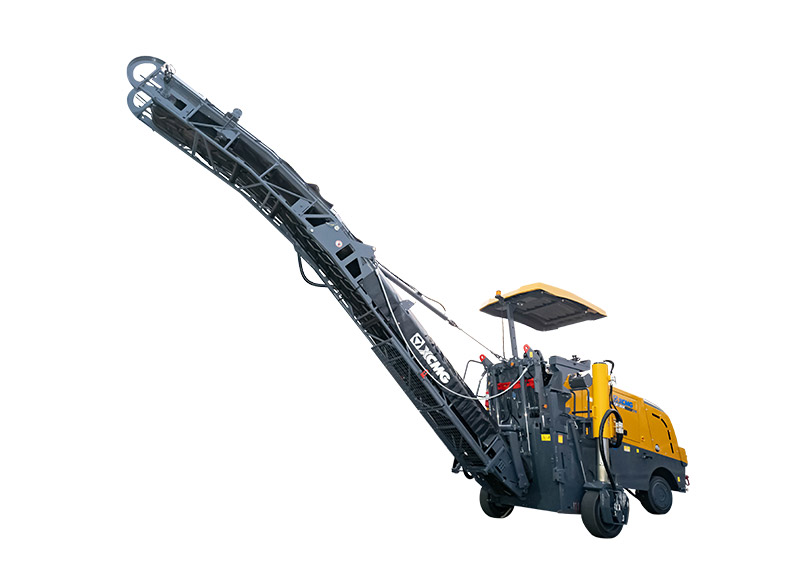

XCMG XM1305K
  • XCMG XM1305K
Milling Machine

XCMG XM1305K

  • 1300mm
    Milling width
  • 300mm
    Milling depth
  • 18mm
    Space between tools
View Complete Details
  • Overview
  • Specifications
Overview

XM1305K milling machine is a kind of medium-sized mill-ing machine with high performance,which is mainly usedfor repair and renovation of asphalt concrete pavementsof highways, National and provincial highways, freightyards, parking lots, communities, etc. It can efficientlyremove road congestion, waves, mesh patterns, ruts,etc.;excavate the pavement pits and trenches;roughen thecement pavement and mill the surface faulting.

This machine has high work efficiency,high level of intelli-gence,long working cycle,and good maneuverability,reli-ability and maintenance,and the overall technical perfor-mance has reached the international advanced level.

Specifications
Milling width 1300mm
Milling depth 300mm
Space between tools 18mm
Quantity of tools 97
Rotor diameter including tool 930mm
Manufacturer SDEC
Model SC7H
Cooling mode Water-cooling
Number of cylinders 6
Rated power 177/2200kW/rpm
Displacement 6.5L
Full-load fuel consumption 42.5L/h
Comprehensive fuel consumption 15L/h
Emission standard EU Stage 3a/CN Stage 3
Voltage 24V
Fuel tank 500L
Hydraulic oil tank 120L
Water tank 850L
Working speed 0-36m/min
Traveling speed 0-8km/h
Theoretic gradeability 75%
Ground clearance 205mm
Width of aggregate belt 500mm
Theoretic conveying capacity 127m³/h
Weight in transportation state 14700kg
working mass 15400kg
