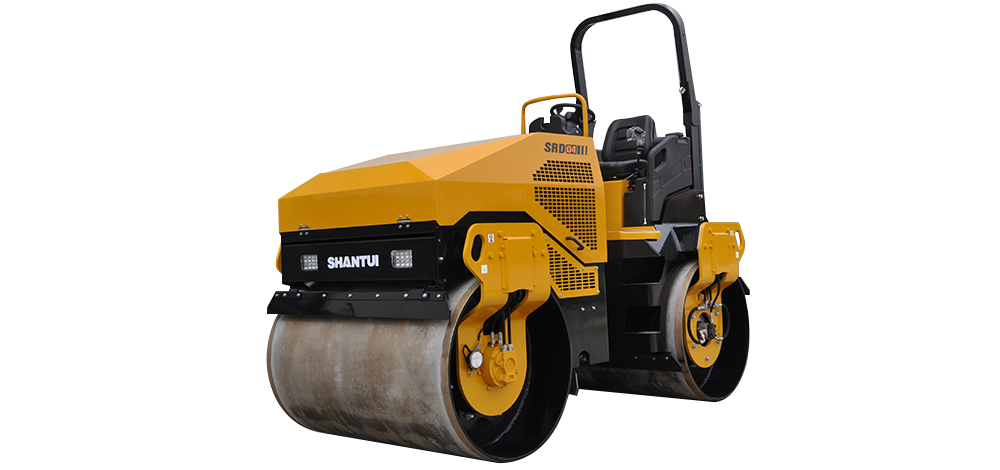

Shantui SRD04
  • Shantui SRD04
Mini Road Roller

Shantui SRD04

  • 2850*1520*2200mm
    External dimensions
  • Yanmar
    Engine brand
  • 35/3000kW/rpm
    Power/speed
View Complete Details
  • Overview
  • Specifications
Overview

Configuration selling point

The special engine matches well with the hydraulic system for high efficiency; with dual-drive traveling and stepless speed change, it has reliable performance and excellent compaction effect

Ease of maintenance and operation comfort

The large water tank extends the work duration; the electronically-controlled sprinkler and vibration buttons are integrated into the handle for comfortable operation; the maintenance points of the engine and hydraulic filter elements are arranged reasonably, and the hood can be opened for easy maintenance.

Adaptability to diverse working conditions

It is suitable for compaction and repair of base course and asphalt surface course of general pavements such as urban roads, intercity roads, rural roads, water conservancy projects, stadiums and other industrial sites
Specifications
External dimensions 2850*1520*2200mm
Engine brand Yanmar
Power/speed 35/3000kW/rpm
Operating weight 4200kg
Front and Rear Static Linear Loads 150/135N/cm
Vibration frequency low/high 60Hz
Minimum turning radius 3000mm
Excitation force 40kN
Amplitude 0.5mm
Gradeability 0.4
Speed 0-12km/h
Emissions Eu stage IIIAIndicated as per China standards
