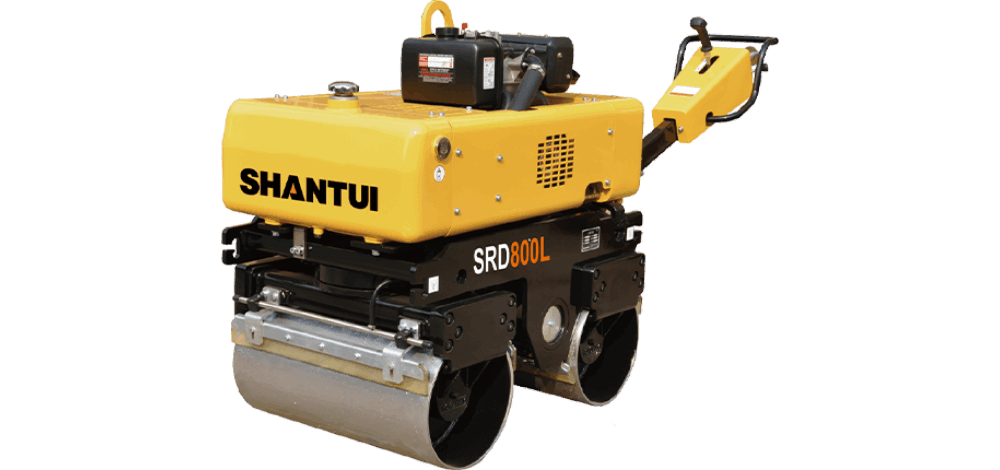

Shantui SRD800L
  • Shantui SRD800L
Mini Road Roller

Shantui SRD800L

  • 1460*850*1800mm
    External dimensions
  • Changchai
    Engine brand
  • 8/3600kW/rpm
    Power/speed
View Complete Details
  • Overview
  • Specifications
Overview

Configuration selling point

With the special heavy-duty variable hydraulic system, the speed can be changed smoothly for excellent compaction performance; with hydraulic steering, it is flexible and light in steering

Ease of maintenance and operation comfort

The traveling, vibration compaction and steering operations can be implemented centrally on the handle, which is easy to operate; the maintenance points are arranged reasonably, and the hood can be opened for easy maintenance

Adaptability to diverse working conditions

With small working radius, it is suitable for work in a narrow area, and has been used widely in ditch backfilling, underground work, construction of road corners and rural construction etc.
Specifications
External dimensions 1460*850*1800mm
Engine brand Changchai
Power/speed 8/3600kW/rpm
Operating weight 860kg
Front and Rear Static Linear Loads 60.7/65.7N/cm
Vibration frequency low/high 65Hz
Excitation force 17kN
Amplitude 0.5mm
Gradeability 0.3
Speed 0-3.5km/h
Emissions Eu stage IIIndicated as per China standards
