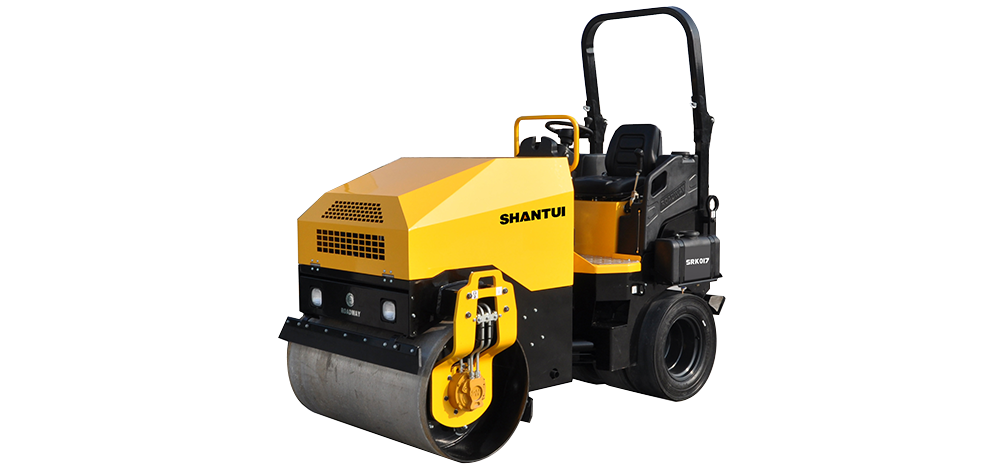

Shantui SRK017
  • Shantui SRK017
Mini Road Roller

Shantui SRK017

  • 2230*1100*2450mm
    External dimensions
  • Yanmar
    Engine brand
  • 17.8/3000kW/rpm
    Power/speed
View Complete Details
  • Overview
  • Specifications
Overview

Configuration selling point

The special engine matches well with the hydraulic system for high efficiency; with dual-drive traveling and stepless speed change, it has reliable performance; the wide-base smooth tread tires guarantee the excellent compaction effect

Ease of maintenance and operation comfort

The large water tank extends the work duration; the electronically-controlled sprinkler and vibration buttons are integrated into the handle for comfortable operation; the maintenance points of the engine and hydraulic filter elements are arranged reasonably, and the hood can be opened for easy maintenance.

Adaptability to diverse working conditions

It is suitable for compaction and repair of base course and asphalt surface course of general pavements such as urban roads, intercity roads, rural roads, water conservancy projects, stadiums and other industrial sites
Specifications
External dimensions 2230*1100*2450mm
Engine brand Yanmar
Power/speed 17.8/3000kW/rpm
Operating weight 1700kg
Front and Rear Static Linear Loads 70N/cm
Vibration frequency low/high 65Hz
Minimum turning radius 2000mm
Excitation force 25kN
Amplitude 0.5mm
Gradeability 0.3
Speed 0-8km/h
Emissions EPA Tier4 Final(EU Stage)Indicated as per China standards
