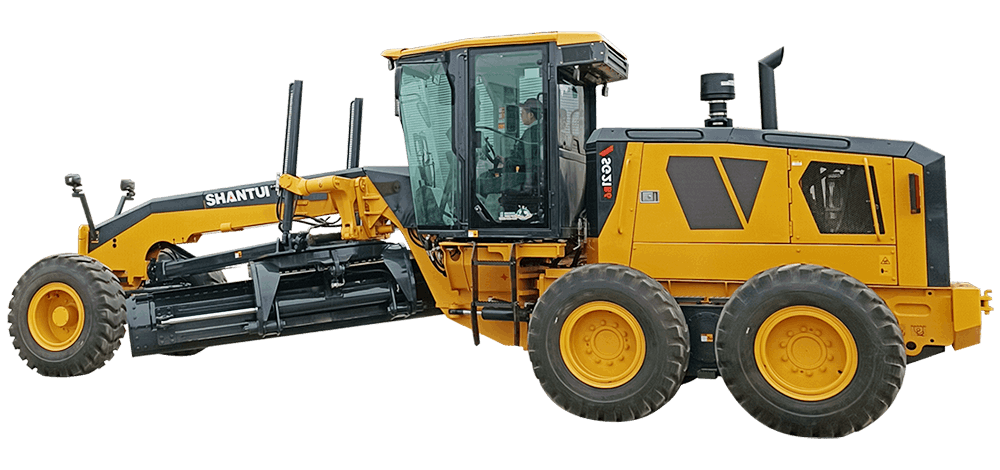

Shantui SG21-B6
  • Shantui SG21-B6
Motor Grader

Shantui SG21-B6

  • 160kW
    Engine power
  • 17T
    Overall weight
  • 4270mm
    Blade width
View Complete Details
  • Overview
  • Specifications
Overview

Configuration selling point

This machine, featuring its mainstream engine and drive system, delivers the utmost traction available in the industry and remarkable operational efficiency. It comes equipped with a heavy-duty slewing bearing working device and cutting edges specially developed by Shantui, ensuring smooth rotation, superior resistance against wear, and exceptional resilience against impacts.

Ease of maintenance and operation comfort

The machine is designed with externally accessible lubrication points for ground lubrication and is equipped with a centralized pressure testing system. Every oil filler is designed to be externally accessible. The cab design of this machine eliminates the A-pillar and presents an expansive 320° wide field of vision. It is furnished with a mechanical suspension seat and an electronic control handle, ensuring a more comfortable and convenient operating experience.

Adaptability to diverse working conditions

The machine offers the flexibility to be fitted with a range of attachments, including the front moldboard and rear ripper, to meet the construction requirements across diverse working conditions, such as leveling, trenching, scraping, and stripping.
Specifications
Engine power 160kW
Overall weight 17T
Blade width 4270mm
External dimensions 9700x2600x3358mm
Engine model 6CTAA8.3-C215
Fuel tank capacity 360L
Hydraulic oil tank capacity 85L
Maximum traction 93kN
Maximum forward speed 39km/h
Maximum reverse speed 25km/h
Blade cutting angle 22~73°
Emissions Eu stage IIIndicated as per international standards
