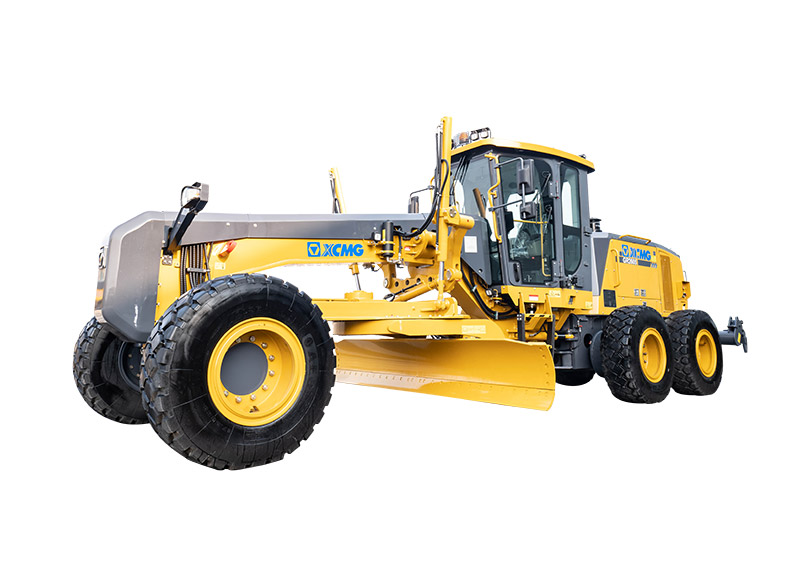

XCMG GR2605(SNOW REMOVAL TYPE FOR THE UNITED STATES AND CANADA)
  • XCMG GR2605(SNOW REMOVAL TYPE FOR THE UNITED STATES AND CANADA)
Motor Grader

XCMG GR2605(SNOW REMOVAL TYPE FOR THE UNITED STATES AND CANADA)

  • L9
    Engine model
  • 194/2100kW/rpm
    Rated power/speed
  • 9448×2895×3500standard
    Machine dimension
View Complete Details
  • Overview
  • Specifications
Overview

The grader is the main machine used for shaping andleveling operations in earthworks,and is widely usedin the leveling of large-area ground and stability layerssuch as highways and airports.In recent years,withthe increasing usage of graders and the advantages ofhigh efficiency of graders,the graders have been usedin working conditions such as bulldozing and paving ofroadbed mixtures and repairing of original landforms.It can also be used for snow removal in cold regions.With a power of 260HP,high strength of the wholestructural parts and sufficient power,GR2605 grader isa heavy-duty grader specially developed for high-loadconditions.

Specifications
Engine model L9
Rated power/speed 194/2100kW/rpm
Machine dimension 9448×2895×3500standard
Machine weight 20000standard
Tire specification 17.5R25
Wheel track 2450mm
Axle distance between front and rear 6625mm
Wheel base between middle and rear 1771mm
Drive speed, forward 5.6/9.1/12.5/20.2/27.4/43.2km/h
Drive speed, reverse 5.6/12.5/27.4km/h
Traction force f=0.75 210kN
Maximum gradeability ≥25%
Tire inflation pressure 425kPa
Work system pressure 24.5MPa
Transmission box pressure 1.85-2.2Mpa
Maximum steering angle, front wheel ±49°
Allowable tilt angle, front wheel ±18°
Maximum oscillation, front axle ±16°
Maximum oscillation, balance box Front 15 rear 15°
Maximum steering angle, frame ±25°
Minimum turning radius 7.8m
Maximum lift above ground 452mm
Maximum cutting depth 755mm
Maximum tilt angle 90°
Cutting angle Front 40 rear 5°
Swivel angle 360°
Length x Height 4270×610mm
Coolant 50L
Fuel tank 352L
Engine 24L
Transmusswon box 38L
Balance box 48 eachL
Drive axle 23L
Hydraulic oil 193L
