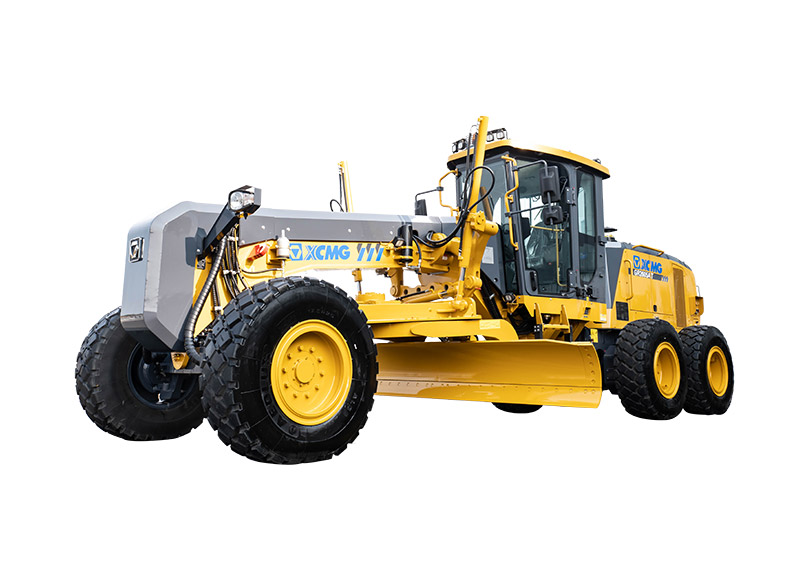

XCMG GR2605AT(USA)
  • XCMG GR2605AT(USA)
Motor Grader

XCMG GR2605AT(USA)

  • QSL8.9
    Engine model
  • 194/2200kW/rpm
    Rated power/speed
  • 9448×2625×3472standard
    Machine dimension
View Complete Details
  • Overview
  • Specifications
Overview

Motor grader is the main machinery used for shaping and leveling in earthwork.It is widely used in theground and stable layer leveling of highway and air-port.In recent years,with the application expanding and high productivity,the use of grader hasbeen promoted in bulldozing and paving of roadbedmixture,reconditioning of original landforms,etc.Besides,it can be applied to snow removing in coldregion.Featuring 260HP power,strong strength ofmachine components and sufficient driving force,GR2605AT is a heavy-duty motor grader researchand developed especially for high-load workingcondition.

Specifications
Engine model QSL8.9
Rated power/speed 194/2200kW/rpm
Machine dimension 9448×2625×3472standard
Machine weight 19000standard
Tire specification 17.5B25
Ground clearance 592Front axle
Wheel track 2156mm
Axle distance between front and rear 6545mm
Wheel base between middle and rear 1696mm
Drive speed, forward 4.9/8/11/17.9/24.7/40.2km/h
Drive speed, reverse 4.9/11/24.7km/h
Traction force f=0.75 ≥99kN
Maximum gradeability ≥25%
Tire inflation pressure 425kPa
Work system pressure 24.5MPa
Transmission box pressure 1.85-2.2Mpa
Maximum steering angle, front wheel ±49°
Allowable tilt angle, front wheel ±18°
Maximum oscillation, front axle ±16°
Maximum oscillation, balance box Front 15 rear 15°
Maximum steering angle, frame ±25°
Minimum turning radius 7.6m
Maximum lift above ground 452mm
Maximum cutting depth 755mm
Maximum tilt angle 90°
Cutting angle Front 40 rear 5°
Swivel angle 360°
Length x Height 3660×610mm
Coolant 50L
Fuel tank 418L
Engine 24L
Transmusswon box 38L
Balance box 90 eachL
Drive axle 30L
Hydraulic oil 193L
