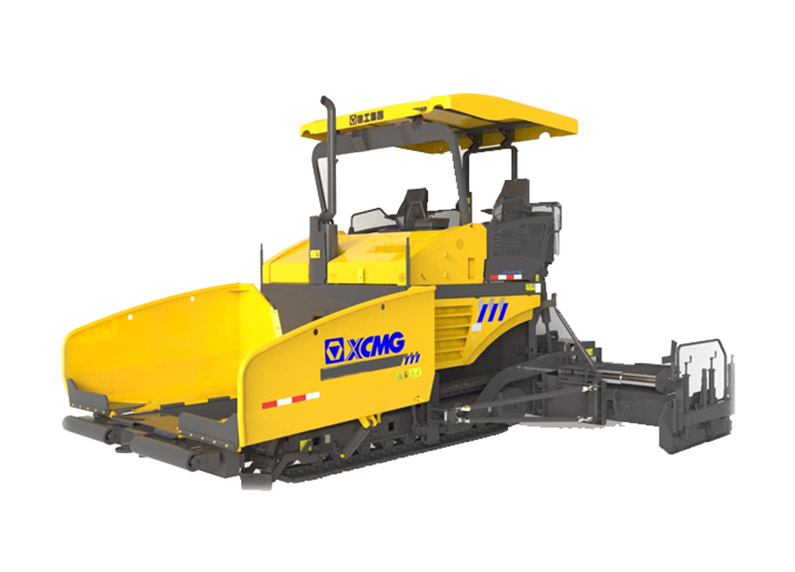

XCMG RP603
  • XCMG RP603
Paver

XCMG RP603

  • 2500~4750mm
    Basic paving width
  • 6000mm
    Max. paving width(Options)
  • 400mm
    Max. pave thickness
View Complete Details
  • Overview
  • Specifications
Overview

RP603 is a medium-sized full hydraulic tracked paver perfectly equipped with standard intelligent control system and user-friendly HMI. The standard classic E475T hydraulic extending screed has basic paving width ranging from 2.5m to 4.75m. With high working capacity and good paving stability, tt is widely used in classified highway construction worldwide, municipal road construction, classified highway maintenance, farms and dams paving construction, especially suitable for asphalt concrete material paving construction on classified highway.


Specifications
Basic paving width 2500~4750mm
Max. paving width(Options) 6000mm
Max. pave thickness 400mm
Max. paving speed 20m/min
Max. drive speed 3km/h
Maximum theoretical productivity 600t/h
Max. gradeability 20%
Manufacturer Cummins
Model QSB6.7
Emission EC Stage Ⅲ
Fuel Diesel
Rated power 129kW
Rated speed 2200rpm
Grounding length 3175mm
Track width 300mm
Hopper capacity 14t
Scraper numbers 2
Scraper speed(maximum) 25m/min
Speed(maximum) 80rpm
Diameter 420mm
Battery voltage 24V
Tractor weight 16t
Operating weight 18.5t
Total weight 19.2t
Sound pressure level LPA at the operator ears 86dB(A
Emitted sound level 105dB(A
Main configuration 1. Cummins EC Stage Ⅲ engine with 129kW. 2. E475TV hydraulic extending screed(electric heating, single tamper). 3. Standard intelligent control system. 4. MOBA leveling instrument/material level instrument. 5. Automatic centralized lubrication.
Options 1. E475T bolt-on extension: 2×0.625m, maximum paving width 6m. 2. Diesel spraying device.
