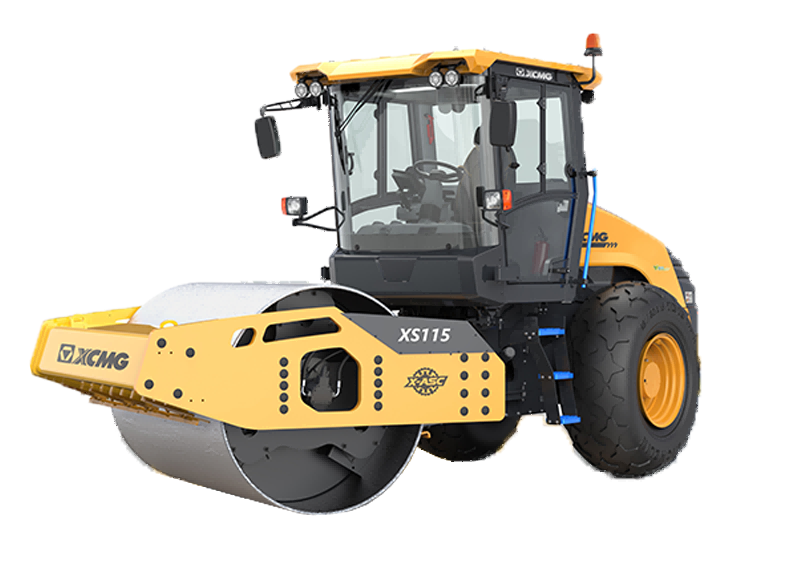

XCMG XS115PD
  • XCMG XS115PD
Single Drum Vibratory Roller

XCMG XS115PD

  • 11000kg
    Operating weight
  • 11400kg
    Maximum operating weight
  • 6400kg
    Front axle weight
View Complete Details
  • Overview
  • Specifications
Overview

XS115PDG single drum vibratory roller is a double pump driven heavy duty, self-propelled, single drum, full hydraulic double drive single drum vibratory roller. The product meets the drain requirements of Stage V in Europe and T4f in North America.It has the characteristics of strong driving capacity, large exciting force, high compaction efficiency, good compaction quality, etc. It is widely used for compaction operation of foundation layer, sub-foundation layer and rock fill in highways, railways, airports, ports, dams and industrial construction sites.

Specifications
Operating weight 11000kg
Maximum operating weight 11400kg
Front axle weight 6400kg
Rear axle weight 4600kg
Static linear load 295N/cm
Working speed 0~11.0F/R
Gradeability 61%
Minimum turning radius 5896outer
Minimum ground clearance 417mn
Wheel base 3060mn
Steering angle° ±35
Oscillation angle° ±10
Vibration frequency 30/35Hz
Nominal amplitude 2.0/1.0mn
Excitation force 252/181kN
Drum diameter 1523mm
Drum width 2130mm
Mode F3.8
Emission EU Stage V
Rated power 115kW
Rated speed 2200r/min
Spec. 23.1-26-12G23TL
Ply rating 12
Air pressure 200kPa
Fuel tank 260L
Urea tank 33L
Operating speed \%
Theoretical gradeability \mm
Braking distance \Hz
Nominal amplitude \kN
Exciting force \High/low frequency
Charge pressure,drive system \MPa
Relief pressure of drive system \MPa
Relief pressure of vibration system \MPa
Relief pressure of steering system \MPa
Model \
Type \
