Sunhunk Semi trailers
  • Sunhunk Semi trailers
  • Sunhunk Semi trailers
  • Sunhunk Semi trailers
  • Sunhunk Semi trailers
  • Sunhunk Semi trailers
  • Sunhunk Semi trailers
Refrigerated semi-trailer

Sunhunk Semi trailers

  • Foaming Process
    Process Standard
  • Food-grade Thermoplastic/Pre-painted Aluminum Sheet
    Inner/Outer Skin Material
  • Polyurethane
    Insulation Material
View Complete Details
  • Overview
  • Specifications
Overview

High Strength

The body structure adopts a locking and riveting combination process, with high tensile strength. The floor uses a T6-level high-strength aluminum guide rail full welding process to enhance overall load-bearing capacity and comply with domestic working conditions.

High Insulation

Using open foaming technology, the density of the heat insulation layer is more uniform without voids or trapped air, for more durable heat insulation.

High Aesthetics

Using pre-painted metal panels, the overall appearance is bright and upscale, improving corporate image.

Lightweighting

The body weight of the container is more than 500 kg lighter than a steel box, helping to carry more goods or save fuel.

Green Environmental Protection

The container body is made entirely of food-grade materials, safer for transporting goods.

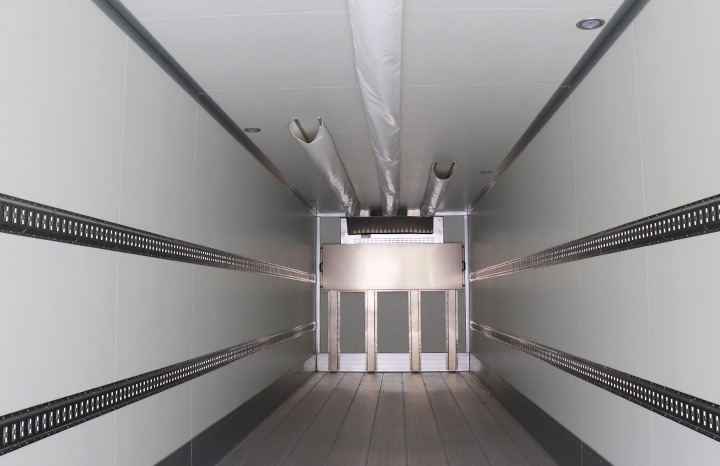

Cold Air Circulation

The floor uses a Great Wall-type ventilation guide rail, in combination with vertical ventilation slots on the side plates and ventilation bars on the door panels, for efficient air circulation inside the container and uniform temperature distribution, safer for transporting fruits, vegetables, and flowers.

Specifications
Process Standard Foaming Process
Inner/Outer Skin Material Food-grade Thermoplastic/Pre-painted Aluminum Sheet
Insulation Material Polyurethane
Vehicle Standard Single-tire Refrigerated Semi-trailer/Dual-tire Refrigerated Semi-trailer
Total Length 13600mm
Total Width 2600mm
Total Height 4000mm
Internal Length 13413/13433mm
Internal Width 2426/2446/2466mm
Internal Height 2440/2490/2540/2600mm
Internal Volume 80~82/80~86m³
Insulation Panel Top 100mm
Insulation Panel Sides 70mm
Insulation Panel Front 100mm
Insulation Panel Back 80mm
Insulation Panel Bottom 200(35mm Castle-Type Aluminum Floor)mm
Bottom Skin Material Thermoplastic Sheet
Bottom Inner Structure High-Strength T6 Castle-Type Ventilated Aluminum Floor (Approximately 35mm)
Wear Plate High-Strength Aluminum Profile (Approximately 300mm High)
Bottom Drainage Hole SUNHUNK Standard Configuration, Two Each Front and Back
Under-mount Frame Full Load-bearing Structure without Chassis Beam/With Chassis Beam Structure
Side Protection Aluminum Alloy Flip-up
Rear Bumper High-strength Carbon Steel Sprayed Paint
Tool Box Aluminum Alloy Toolbox/1 Piece
Spare Tire Mount 2 Sets (1 Truck 1 Trailer)
Rear Door Ladder Pull-out Ladder (Zinc-plated Carbon Steel)
Tractor pin Bolt Assembled, JOST50# Drawing Pin
Support Legs JOST-A300C/A440
Suspension Air Suspension/4-Leaf Spring Air Suspension
Axle Three Axles, BPW Axle (400K)
ABS WABCO
Tires 425/65R22.5/12R22.5 、11R22.5、275R22.5、295R22.5
Wheel Rims Aluminum Alloy Rim 13×22.5, 6 Pieces (Mercury Aluminum)/Aluminum Alloy 9.0/8.25-22.5, 12 Pieces (Borer)
Braking Form Drum Brake/Disc Brake
