| Work Height Max. | 23.8m(78.1ft) |
| Platform Capacity | 300/450kg(661/992lbs) |
| Machine Width | 2.49m(98inft) |
| Horizontal Outreach | 17m(55.8ft) |
| Machine Weight | 12300kg(27117lbs) |

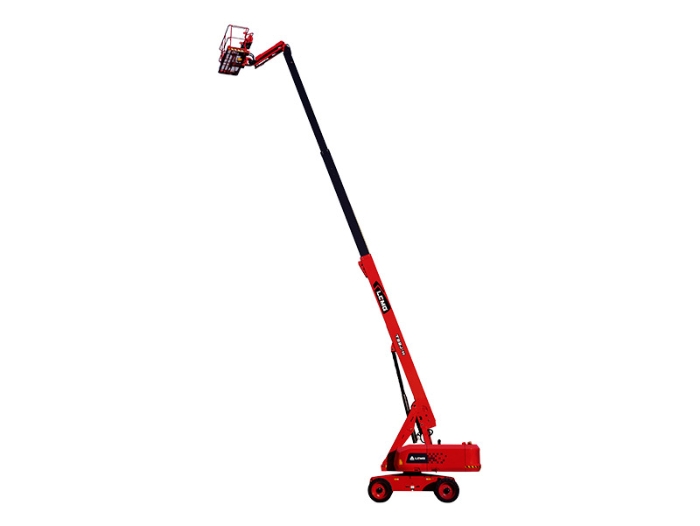

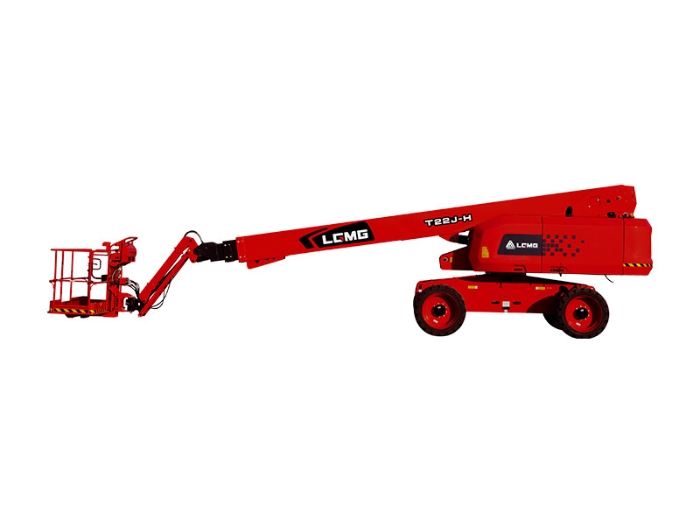

LGMG has a complete line of engine-driven, high-capacity telescopic boom aerial work platforms, with the max working height ranging from 21.8 to 40.2 meters (71'6" /131'11" ). With a double capacity design of 450/300kg (992/661lbs), the machine can allow up to 3 people to work at the same time both indoors and outdoors, which greatly improves work
efficiency.
l Full-time floating axle, maximum 5 degrees tilt angle chassis
l Smoother maneuvering, precise positioning and comfortable operation
l Universal key components
l Automatic engine speed control, boom descends by its own weight
l Intelligent diagnostic and control system with precise fault analysis
Standard features
· Proportional control
· Horn/Hour meter
· Flashing beacons
· Overload sensing system
· Telematics connector
· Auto-leveling platform
· Emergency stop button
· Oscillating axle
· Over tilt protection system
· Anti-collision protection
· Platform tool box
· Cylinder bellows
· Intelligent diagnostic system
· Descent alarm with flashing beacon
· RT Foam-filled tires
· Platform control cover
Optional
· AC power to platform
· Telematics
· Glazier kit
· Auxiliary rail
· Hydraulic generator kit
· Hydraulic oil radiator
· Solid Non-marking tires
· Solid tires
· Foam-filled non-marking tires
· Half-height mesh platform
· 3.5kw Hydraulic generator
· Biodegradable hydraulic oil
· Cold weather package
