XCMG XGS30K

30300mm

Working Height
300kg(unlimited)/460kg(limited)kg

Lift capacity
16700kg

Weight

View Complete Details

SEND EMAIL

Complete Details

GET LATEST PRICE

QUICK INQUIRY

Overview
Specifications

Overview

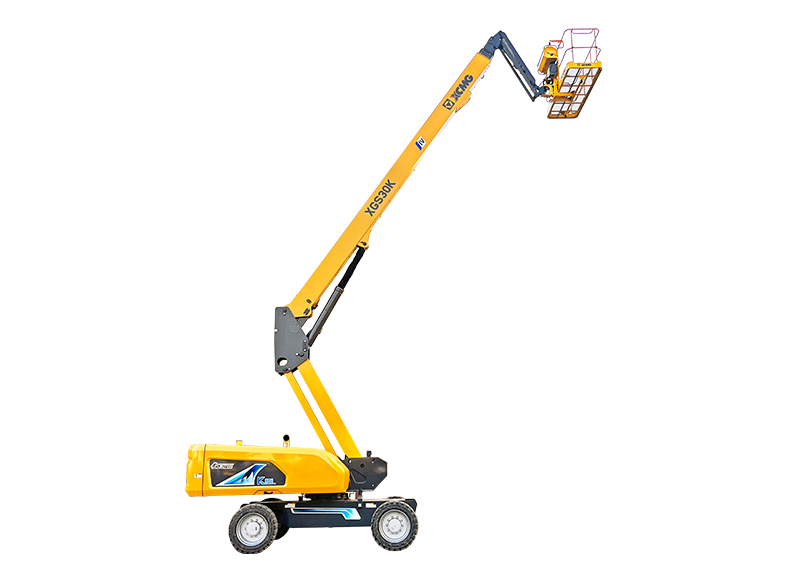

XGS30K mobile elevating work platform is a kind of straight-arm mobile elevating work platform with compact layout, precise design, strong drive and easy operation. It is a three-section telescopic boom + tower arm mechanism with a small flying arm, which has certain obstacle-crossing ability, large working amplitude and wide range; it adopts dual load control system, which can automatically adjust the working amplitude according to the load.

Specifications

Working Height	30300mm
Lift capacity	300kg(unlimited)/460kg(limited)kg
Weight	16700kg
Overall dimension-Stowed	12500x2490x2820mm
Overall dimension-Transportation	11000x2490x3100mm
Dimension of working platform	2490x900x1150mm
Wheelbase	3000mm
Fly jib length	1850mm
Ground clearance	365mm
Max.Platform height	28.3m
Max.Working range	21m
Max.Occupants	3
Max.Working slope	X-5°/ Y-5°
Telescopic boom luffing range	-4°~ +73°
Flying jib luffing range	-65°~ +70°
Turntable rotation	360°
Platform rotation	160°
Drive speed	5.5 km/hstowed
Drive speed	0.6 km/hUp or extended
Min.Turning radius	6.25 minside/outside
Turntable tailswing	4.4 mstowed
Max.Gradeability	45% (24°)
