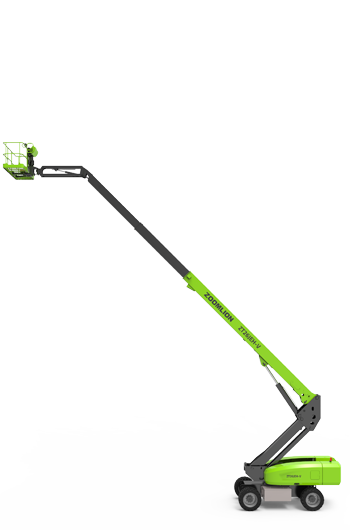

Zoomlion ZT26JEH
  • Zoomlion ZT26JEH
Telescopic Boom Lift

Zoomlion ZT26JEH

  • 28.70m
    Work Height
  • 26.70m
    Platform Height
  • 22.1m
    Horizontal Outreach
View Complete Details
  • Overview
  • Specifications
Overview

CE Certified

Safe and reliable lithium battery power system equipped with BMS low-temperature heating and low-temperature charging current control functions  improves battery life by 30% and adapts to -20℃ cold environment

Fast charging technology adapting to complex charging enviornment,  no fear of wide voltage flfluctuations, efficiency increased by 20%

Wheel side AC drive system, the maximum gradeability  can reach 45%

Electro-hydraulic system with auto flow  controlling , saving energy of 10%

Brand-new appearance with lightweight  GFRP composote material hood and  integrally formed coating features  anti-corrosion, heat presevation, aging  resistance and easy cleaning

Assembled large-opening  component box, open-close hood,  and a variety of reserved inspection  holes easy to service

Range extender and battery power  system for long working hours;  Available fuel or electric powered mode,  more fuel efficient than diesel models

Specifications
Work Height 28.70m
Platform Height 26.70m
Horizontal Outreach 22.1m
A Overall Length (Stowed) 11.91m
B Overall Width (Stowed) 2.49m
C Overall Height (Stowed) 2.82m
D Platform Length 2.44m
E Platform Width 0.91m
F Wheelbase 2.80m
Track width 2.49m
G Ground Clearance 0.41m
Platform Capacity 300/454kg
Drive Speed (stowed) 5.5km/h
Gradeability 45%(24°)
Turning Radius (Inside) 3.11m
Turning Radius (Outside) 6.16m
Turntable Rotation 360° continuous
Platform Rotation ±90°
Tail Swing 1.61m
Jib Rotation 130°(﹣55°~75°)
Max. Wind Speed 12.5m/s
Battery 80V / 460Ah
Range Extender 8kW
Charger 5kW/80V
Drive Motor 5.2kW
Lift Motor 30kW
Auxiliary power 12V DC
Fuel Tank 105L
Hydraulic Tank Capacity 120L
Tire Type Foam-filled tireSolid tire
Gross 17200kg
