| Work Height | 72.3m|237ft 2in |
| Platform Height | 70.3m|230ft 8in |
| Horizontal Outreach | 32.6m|106ft 11in |

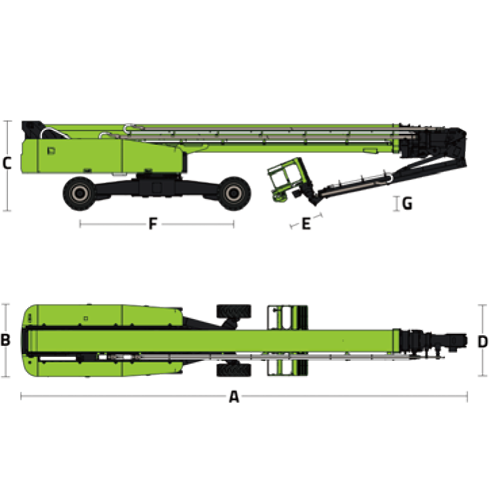

| A - Stowed Length | 16.5m|54ft 2in |
| B - Stowed Width | 2.5m|8ft 2in |
| C - Stowed Height | 3.16m|10ft 4in |
| D - Platform Length | 2.44m|8ft |
| E - Platform Width | 0.91m|3ft |
| F - Wheelbase | 6.2/5.4m|20ft 3in/17ft 9in |
| Tread | 2.5/5.6m|8ft 2in/18ft 4in |
| G - Ground Clearance | 0.40m|1ft 4in |
| Platform Capacity (Unrestricted/Restricted) | 230/300/454kg|510/660/1000lb |
| Drive Speed (Stowed) | 4.5km/h|2.8mph |
| Gradeability | 40% (22°)|40% (22°) |
| Turning Radius (Inside) | 7.42/2.69m|24ft 4in/8ft 10in |
| Turning Radius (Outside) | 9.8/7.39m|32ft 2in/24ft 3in |
| Turntable Swing | 360° continuous|360° continuous |
| Platform Rotation | ±90°|±90° |
| Tail Swing | 2.1m|6ft 11in |
| Jib (Range of Articulation) | 125° (-55°~70°)|125° (-55°~70°) |
| Max. Wind Speed | 12.5m/s|28mph |
| Engine | Cummins F3.8 (Eu Stage V)Cummins F4.5 (China Stage IV)Cummins QSF3.8 (China Stage Ill)|Cummins F3.8 (Eu Stage V)Cummins F4.5 (China Stage IV)Cummins QSF3.8 (China Stage Ill) |
| Fuel Tank Capacity | 200L|52.8 us gal |
| Control Voltage | 12V DC|12V DC |
| Hydraulic Tank Capacity | 480L|127 us gal |
| Drive Mode | 4WD|4WD |
| Steering Mode | 4WS/Front wheel/Crab|4WS/Front wheel/Crab |
| Type | Foam-filled Tires|Foam-filled Tires |
| Gross | 38300kg|84437lb |
